RESIN FLOORING CASE STUDY

Hospital Resin Flooring Yorkshire

Location
Yorkshire
Sector
Healthcare
System
Heavy Duty Flowable Resin Flooring
Floor area
760m²

Project Overview

The NHS Project posed a unique challenge: tight timelines set by the main contractor coupled with a demanding workload due to a faulty screed overlaying the concrete substrate.

To add to the intricacies, our team was to operate amidst other contractors. This dynamic required not only skill but also impeccable coordination.

The discovery of the damaged screed meant that our initial workload, which was already demanding, had escalated. With a looming deadline and a site teeming with other contractors, the solution was clear. Operating throughout the night, across multiple days, would be the best approach to maintain efficiency while ensuring minimal disruptions.

Assessment and Recommendation

Machinery and tool selection would play a pivotal role, especially under existing time pressures. After a thorough assessment, our team devised a strategy. Firstly, comprehensive substrate repairs would be carried out, followed by an essential double priming.

The flooring solution would be ta 3mm-4mm polyurethane flowable screed. This approach was tailored to meet the client’s exacting standards, ensuring a balance of functionality, visual appeal, and durability against daily wear and tear.

Preparation and Repair

Our task commenced with a deep dive into the problematic screed to revert to the original substrate. This phase saw the deployment of heavy-duty scabblers, kango hammers, and a precise double-headed grinder. Each tool was chosen for its specific role, ensuring a flawless preparation.

Once the underlying concrete was ready, the team seamlessly transitioned into the repair phase. This involved the usage of specialised repair mortars and scratch coats to address any inconsistencies or defects, reinforcing our commitment to quality and durability.

Installation Details

Two meticulous coats of epoxy primer were applied to the substrate, a step ensuring complete sealing and eliminating potential pin holing in the concluding stages.

The Finished Floor

Client Feedback and Satisfaction

Our unwavering dedication and adaptability culminated in an impressive early finish, with the project wrapping up in 6 nights as opposed to the expected 7.

Beyond the timely completion, the project earned JD Flooring commendations for our stellar work ethic, professionalism, and exceptional craftsmanship from the main contractor and especially from the NHS.

THE SYSTEM WE INSTALLED

Resin Flooring Type Used

Heavy Duty Flowable Resin Flooring

A three part filled system that self smooths to a seamless finish at 4mm or 6mm. It is specified for heavy to very heavy duty use where cleanability matters as much as durability.

Resistance in wet conditions depends on the seal coat selected. Anticipated life is 10 to 12 years under medium duty use and 5 to 7 years under heavy duty use. Static controlled versions are available.

Heavy Duty Flowable Resin Flooring characteristics
Application3 part filled system providing a self-smoothing finish
Intended UseHeavy duty to very heavy duty use
Thickness4mm & 6mm
Slip ResistanceSome resistance in wet conditions subject to seal coat selection
Anticipated LifeMedium duty 10-12 years / Heavy duty 5-7 years
ChemicalsVery good chemical attack properties
CleanabilityVery good cleanability
StaticStatic controlled versions available
EXPLORE THE PORTFOLIO

More Case Studies Like This One

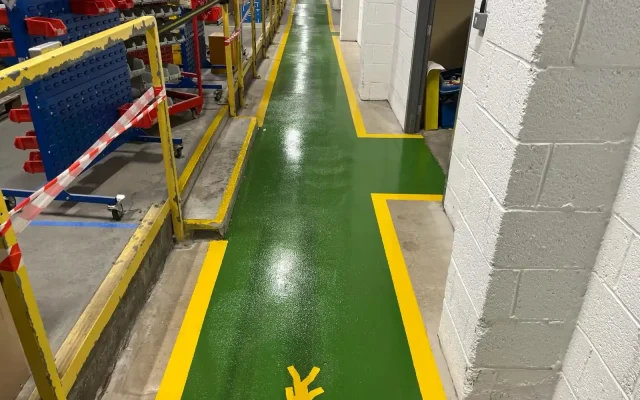

As a trusted partner and the approved contractor for a large electrical and electronics manufacturer based in Stockport, JD Flooring recently completed a resin flooring demarcation project to

StockportHigh Build Coating

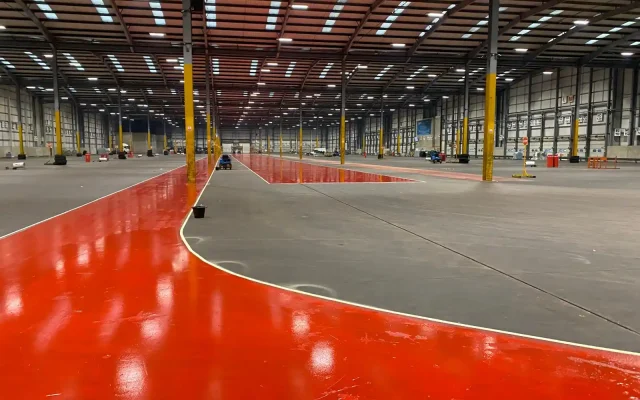

As a trusted partner and the approved contractor for this international distribution company based in the West Midlands, JD Flooring was tasked with the annual re-coating of the

West MidlandsHigh Build Coating

An engineering company based in Warrington recently relocated to new premises, requiring their 165m2 manufacturing floor space to be brought up to health and safety standards. The client

WarringtonHigh Build Coating

An renowned International Oil Export Company, located in the heart of the West Midlands, approached JD Flooring Ltd for a significant update on their resin screed flooring system. Five

West MidlandsHigh Build Coating

This project involved a prominent Cheese Producing Company, based in Wales, who are widely recognised for their quality products in the Food Sector.This client, was already familiar with

WalesHigh Build Coating

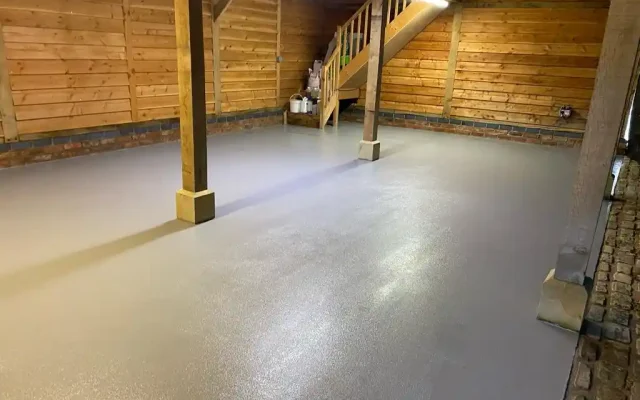

Returning to JD Flooring Ltd, the client, an avid collector of high-end sports cars, had constructed a new garage in rural Cheshire.

CheshireHigh Build Coating

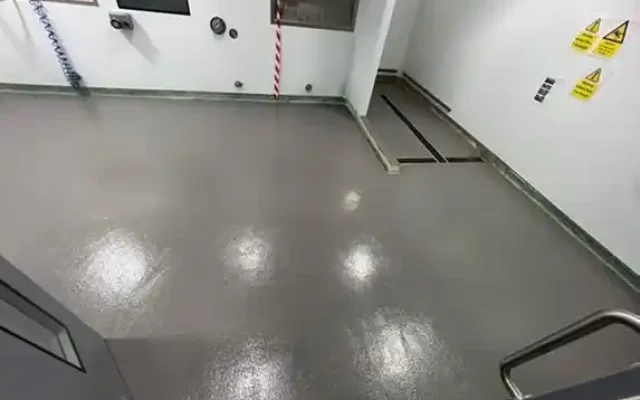

Our client is a globally renowned Pharmaceutical Company, setting the benchmark in the industry. They operate in a sector where precision, cleanliness, and compliance with stringent standards are

LeicesterFloor Seal

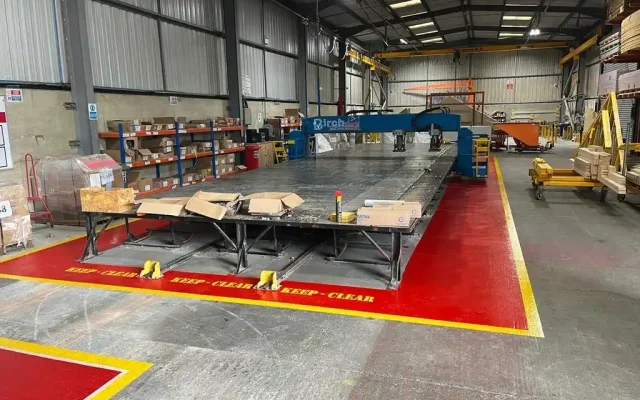

A key player in the global market, this Leicester-based timber truss and components manufacturer faced a specific challenge within their facility.The project involved installing epoxy resin demarcation across
