Resin Flooring Installation Case Study – Primary School Hall, Cheshire.
Primary School
Project Overview
As the approved contractor for a school district in Cheshire, JD Flooring Limited was tasked with addressing the deteriorating floor in the main hall of a Primary School.

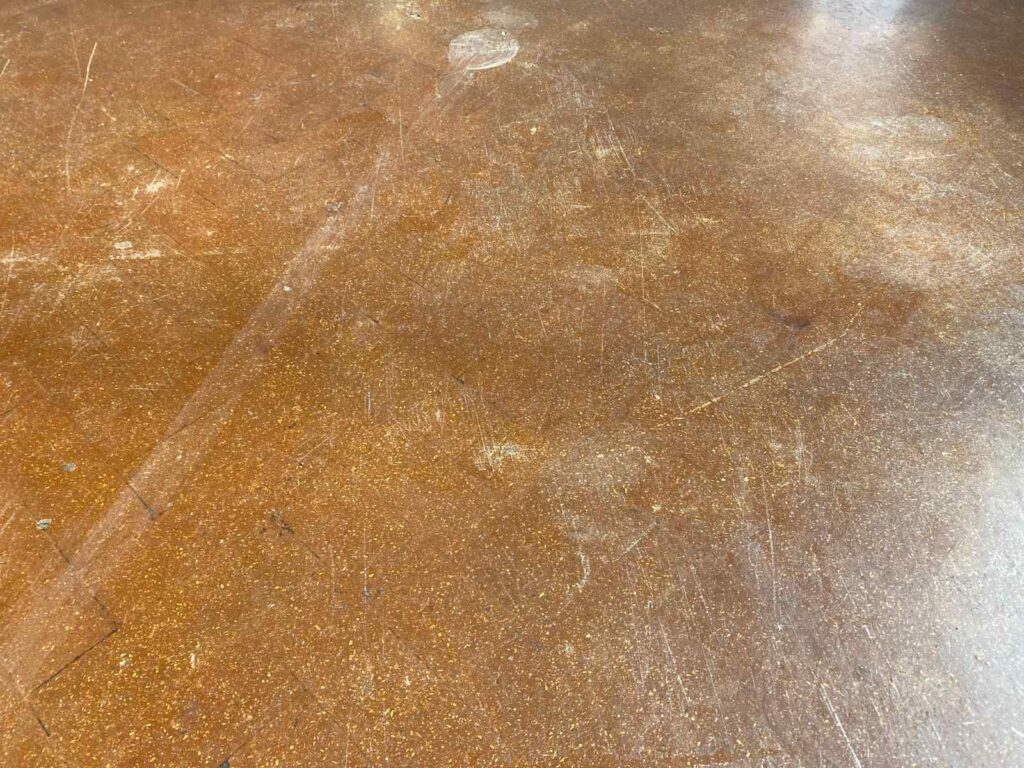

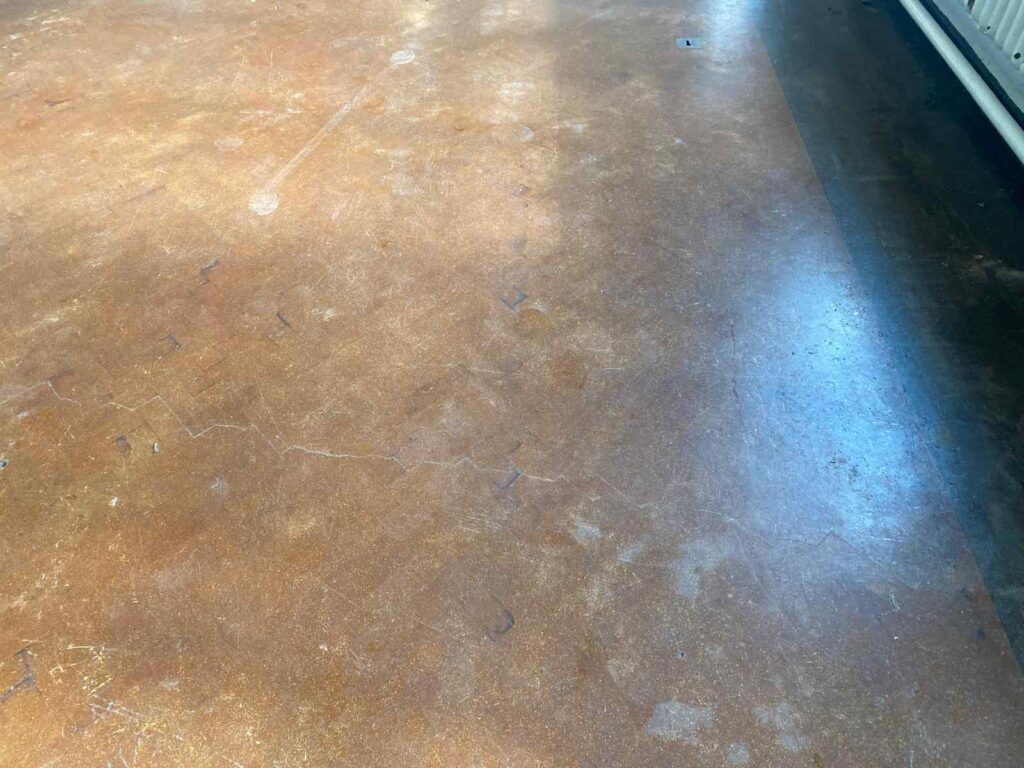

Built in the 1950s, the school faced ongoing maintenance challenges, particularly with its ageing magnesite flooring.
The surface had begun to break down significantly, causing issues with dust from the degrading sawdust-based system.
With an approximate floor size of 185m2, our team was called upon to provide a modern, durable solution that would meet the diverse needs of this multi-purpose space.
Assessment and Recommendation
Our initial assessment involved conducting thorough tests to determine the best course of action. We carried out pilot holes to check the depth of the existing system and performed spot grinding to assess how the old flooring would respond to treatment. These tests yielded positive results, indicating that the surface was suitable for renovation.
Based on our findings, we recommended a flexible self-smoothing system. This solution was chosen for its ability to bridge any movement in the substrate and provide a soft underfoot feel, which was crucial given the hall’s dual function as both a dining area and a sports facility. The specified system comprised mechanical preparation, two scratch coats of primer, and a 3mm self-smoothing polyurethane flexible trowel-applied screed.
Preparation, Preparation, Preparation. It’s the Key
95% of all resin flooring installation failure is due to poor sub floor preparation
Preparation and Repair Details

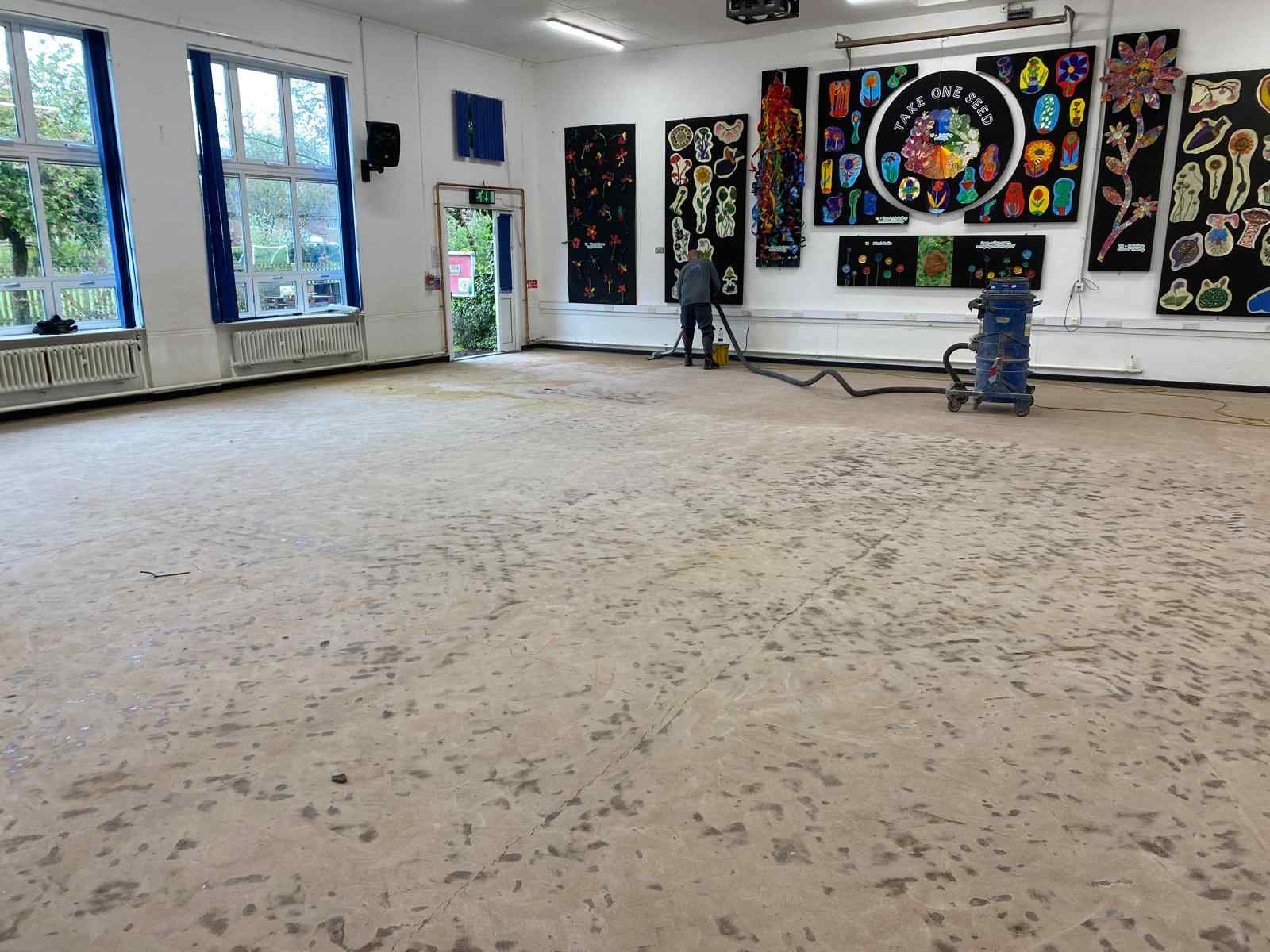

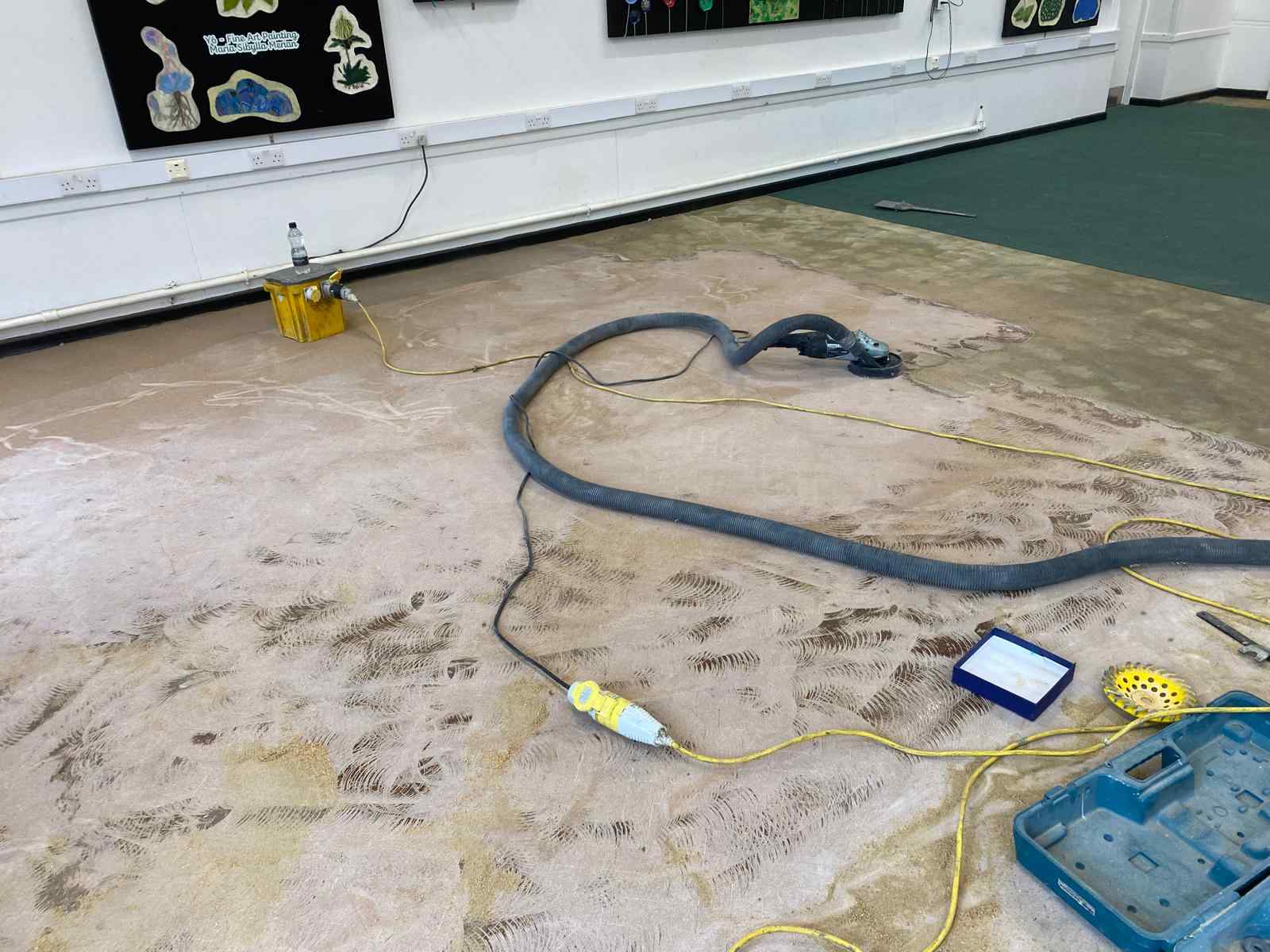

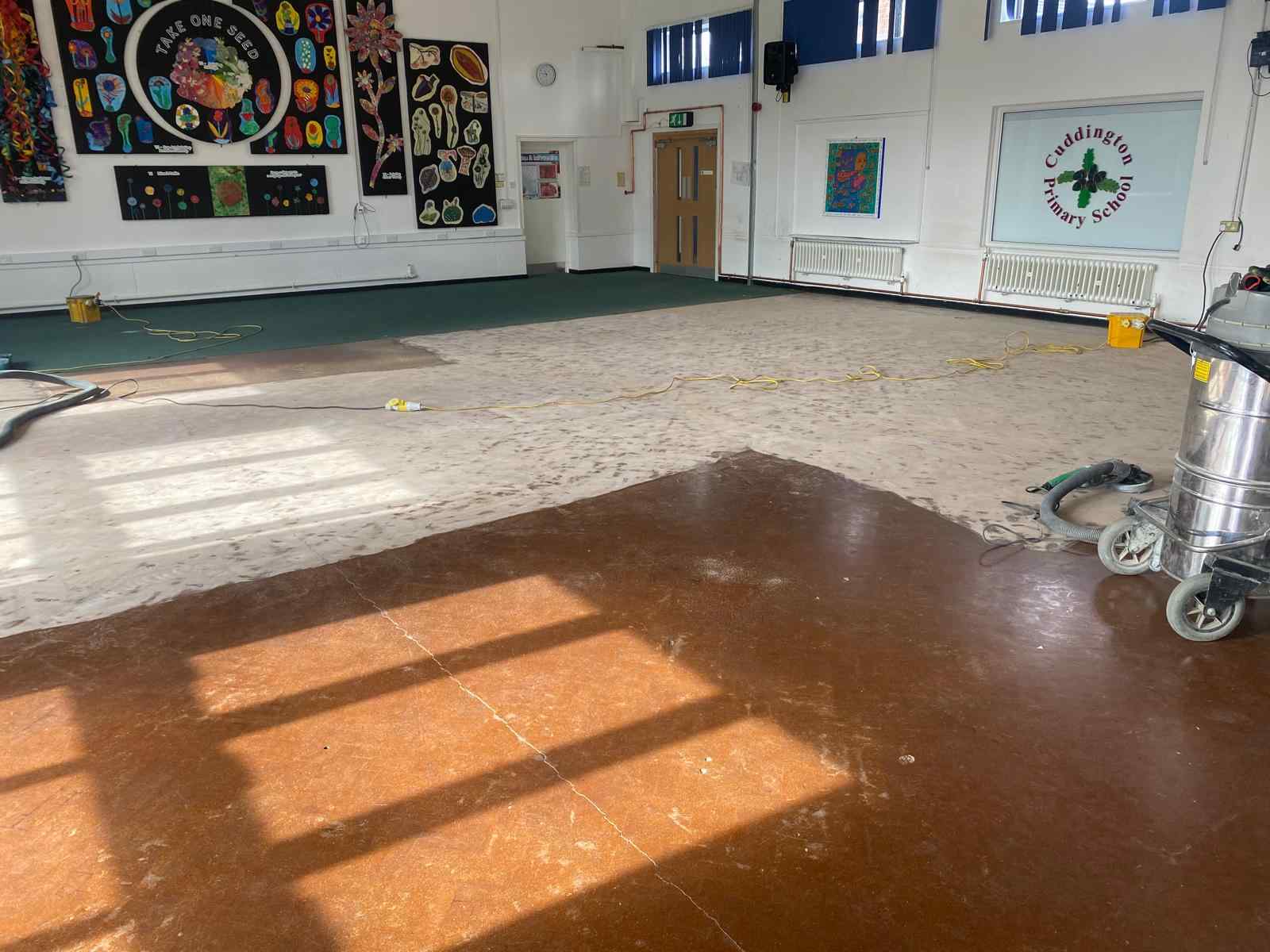

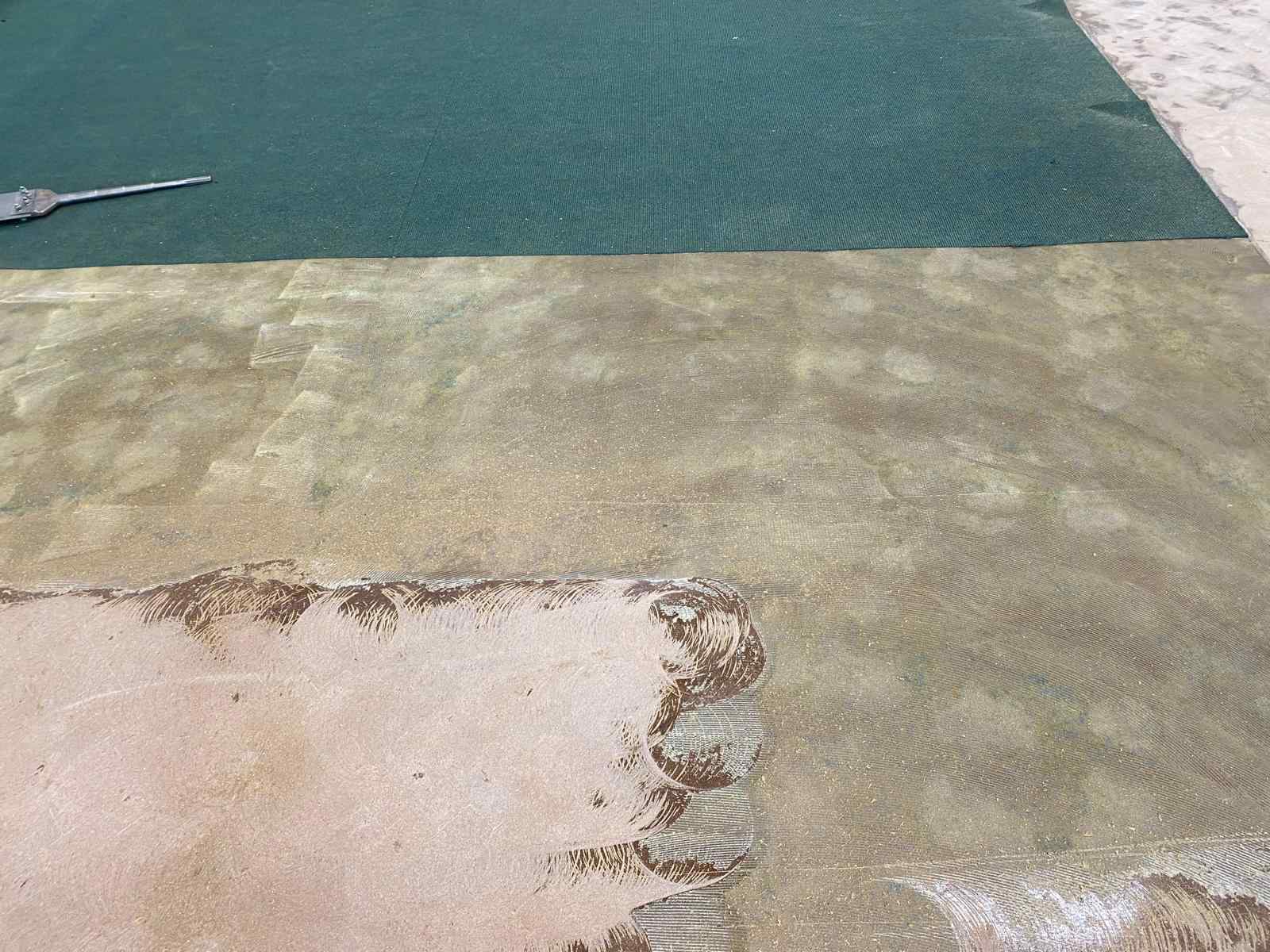

The preparation phase was critical to ensuring the longevity and effectiveness of the new flooring system. We began by diamond grinding the existing surface to create an ideal substrate for the new application. In areas where carpet had previously been installed, we adapted our grinders with PCD attachments to effectively remove the latex glue residue.

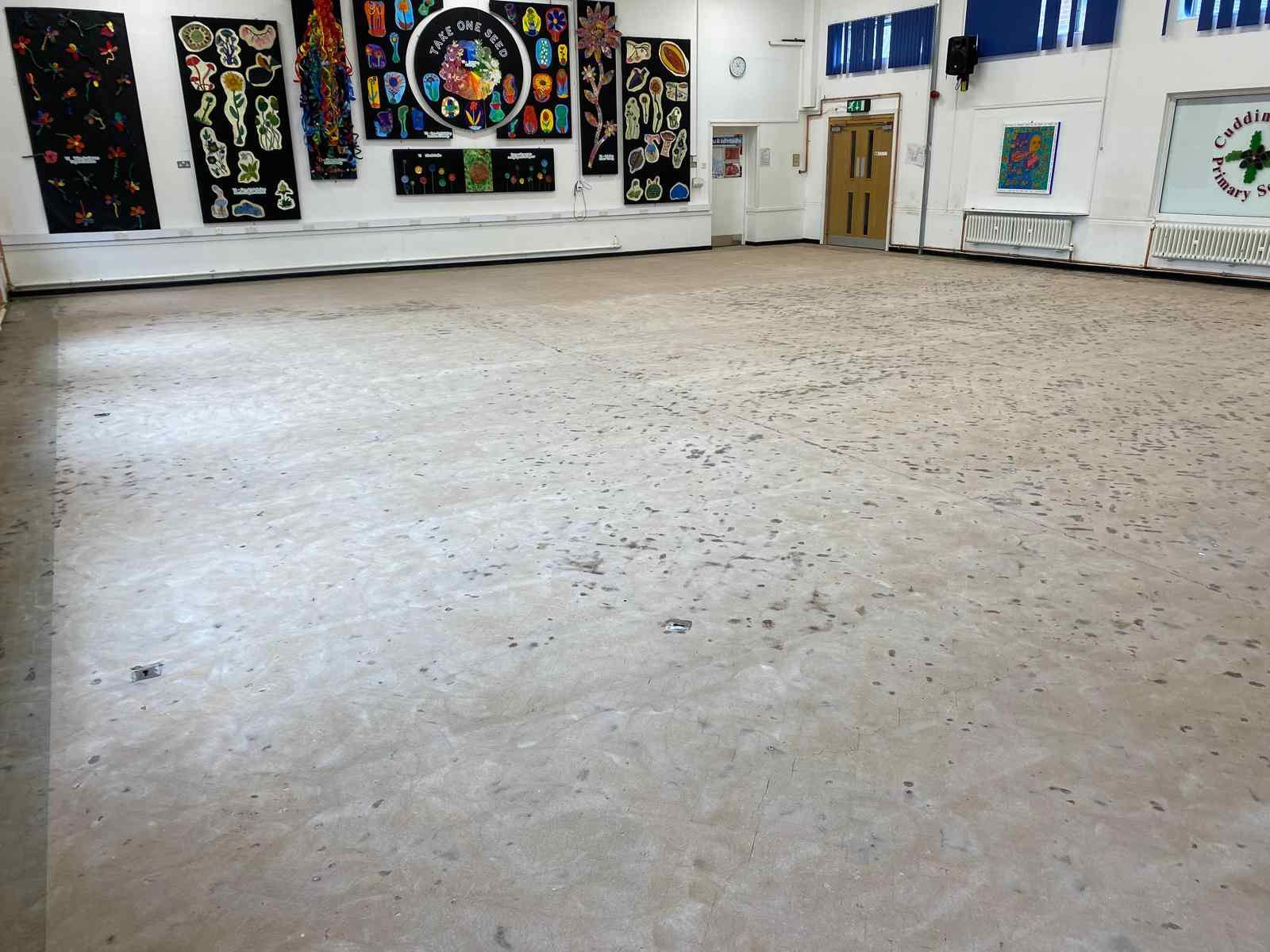

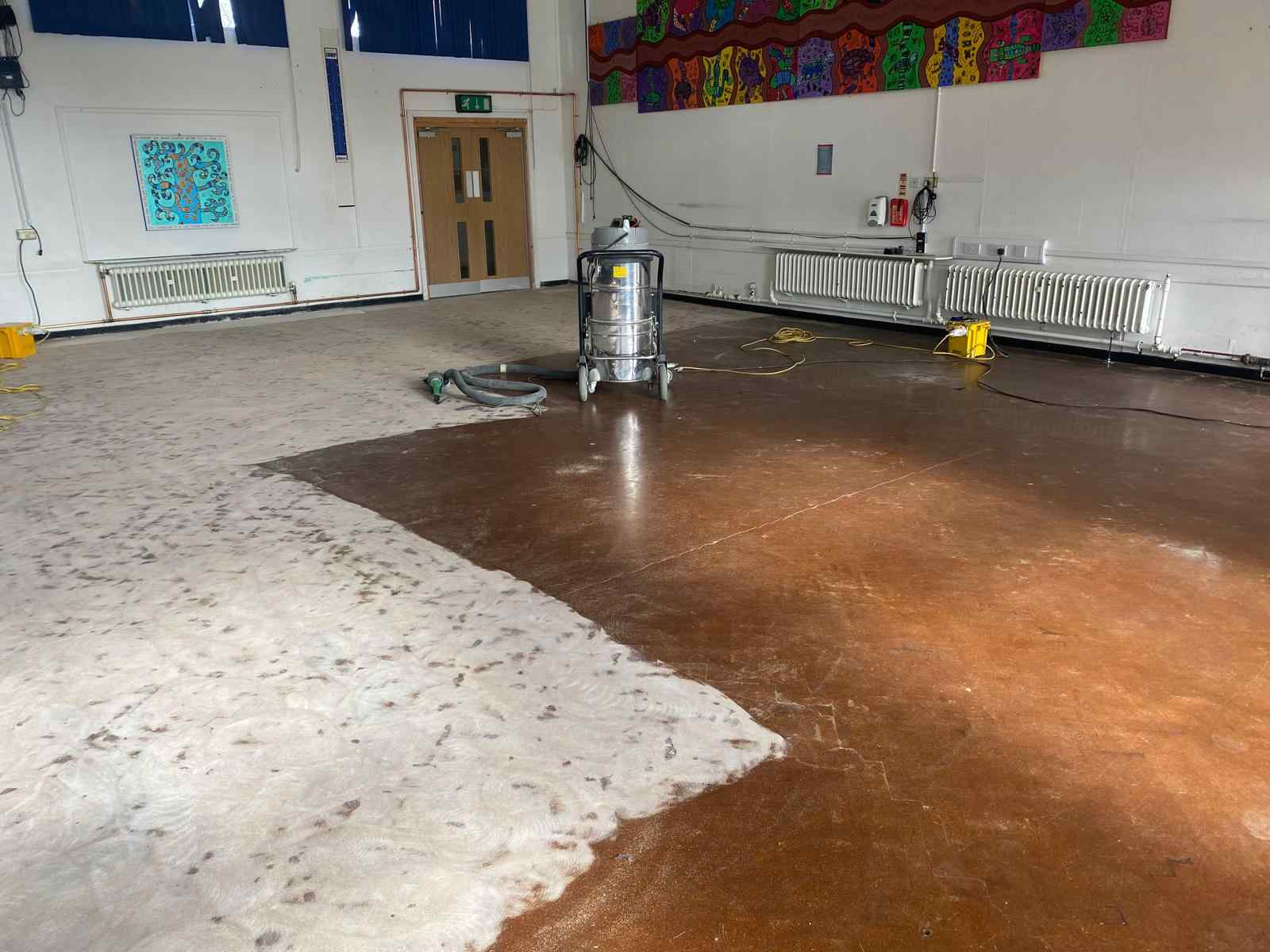

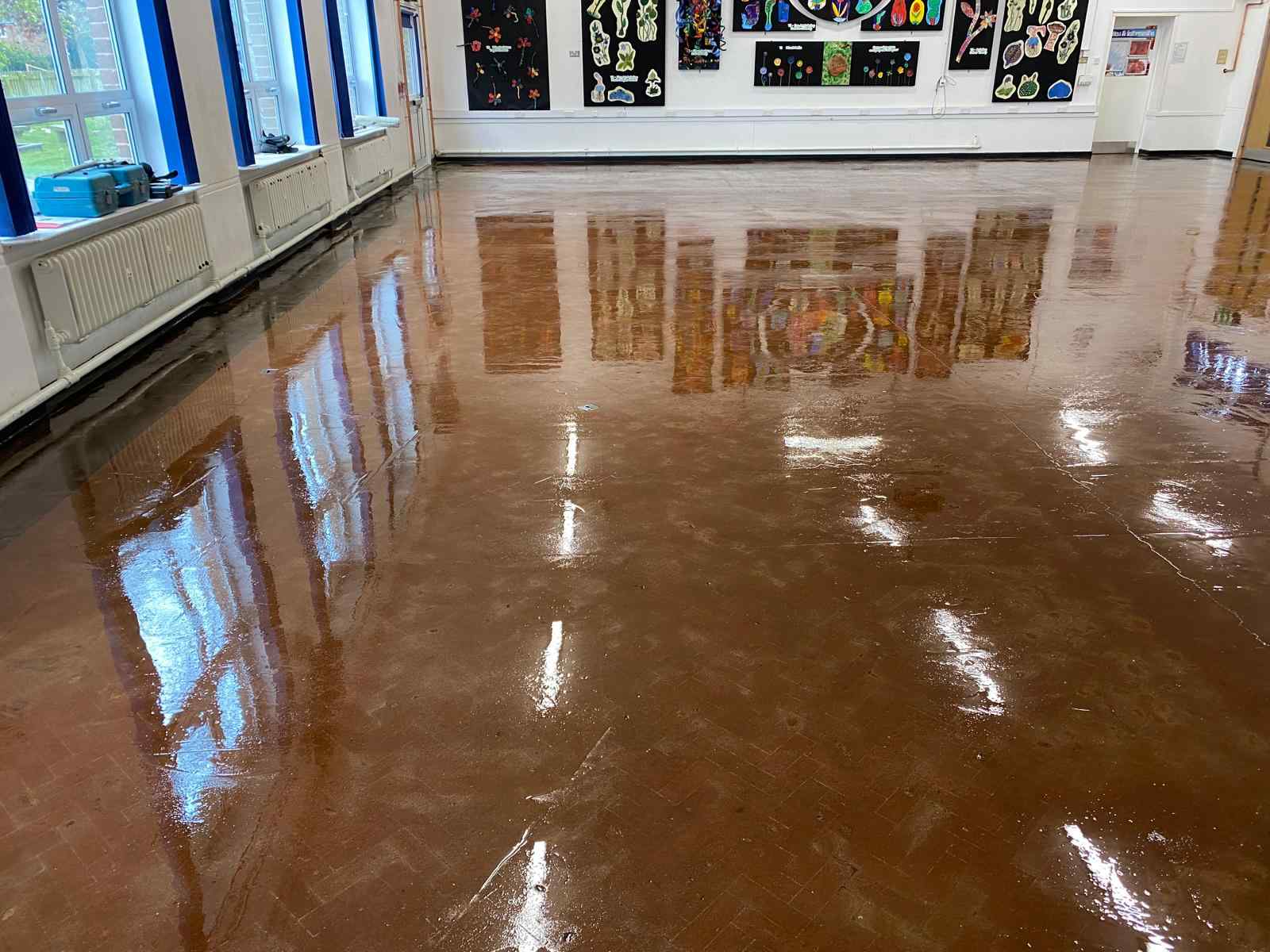

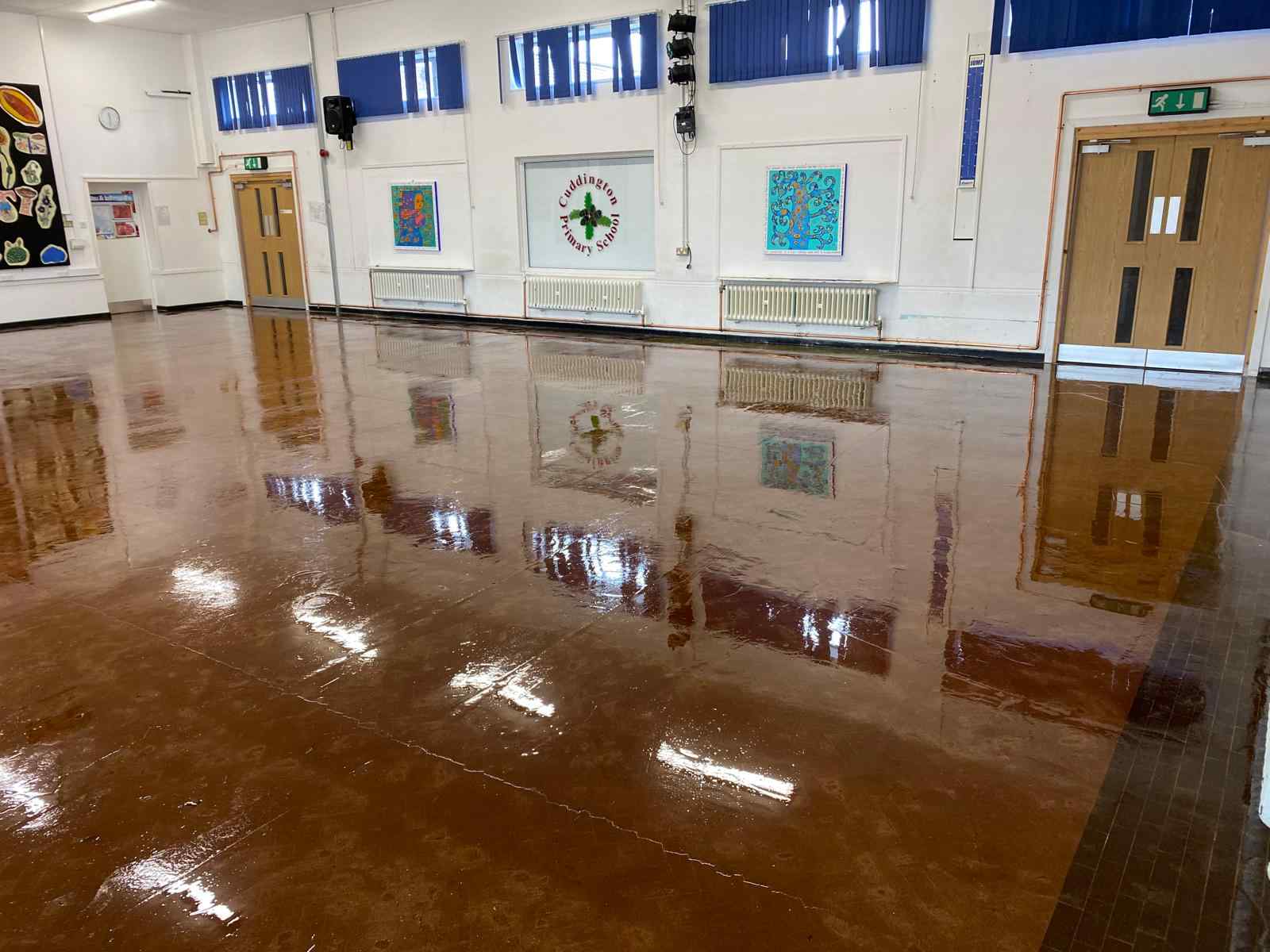

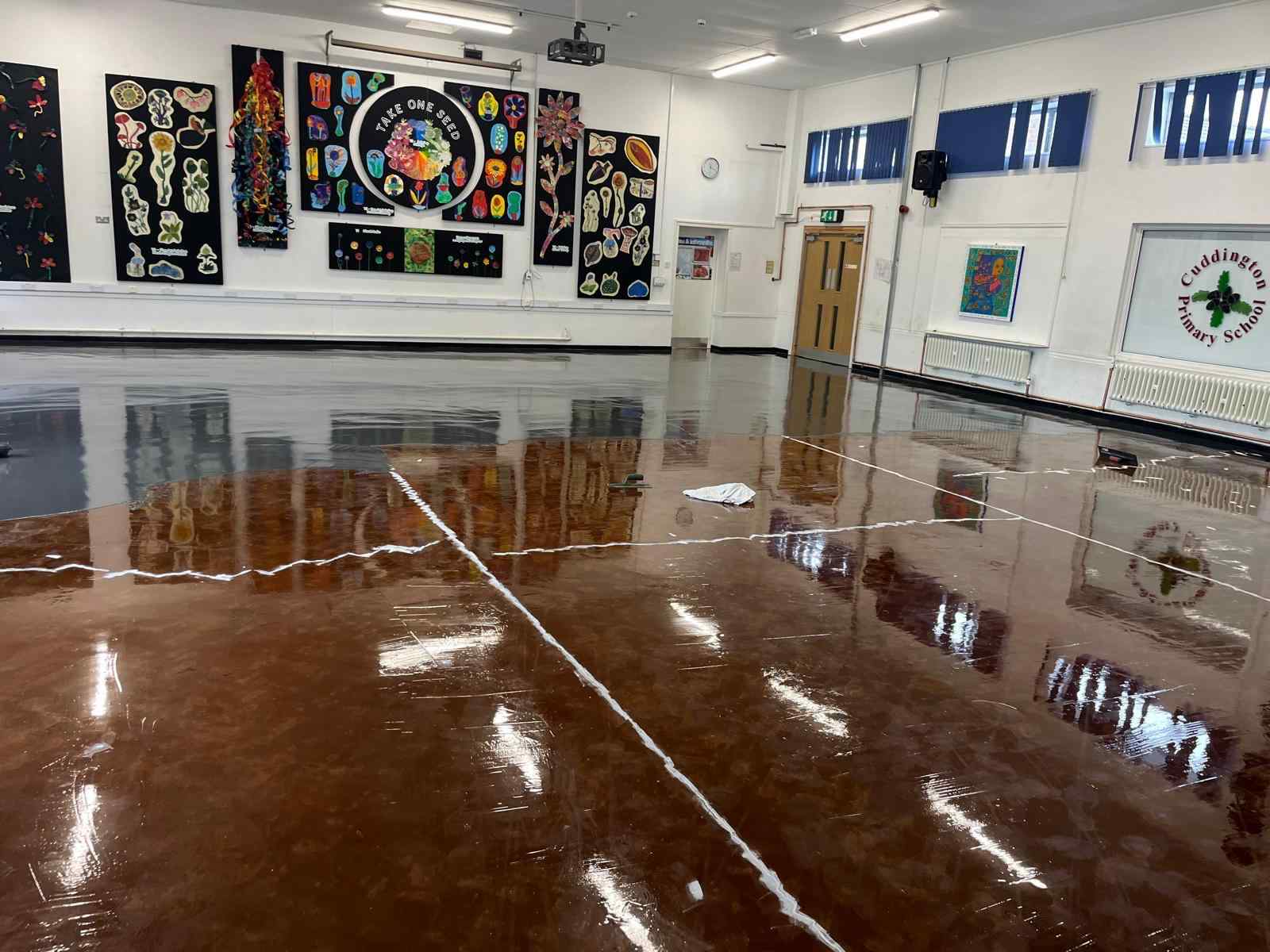

Following the grinding process, we thoroughly vacuumed the entire area to remove all dust and debris. We then applied two coats of primer using a squeegee method, back rolling each coat to ensure even coverage. These primer coats were allowed to cure overnight between applications.

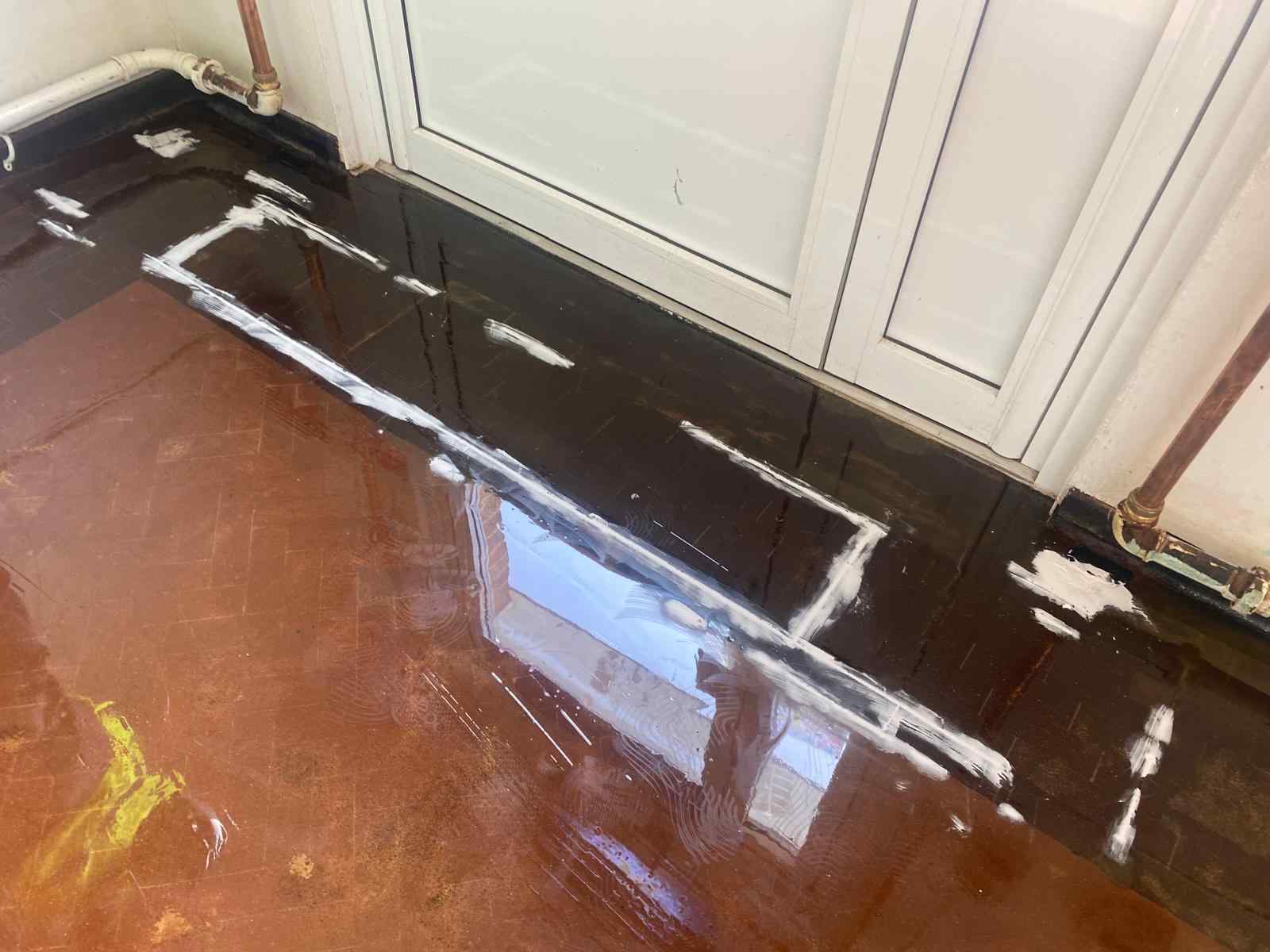

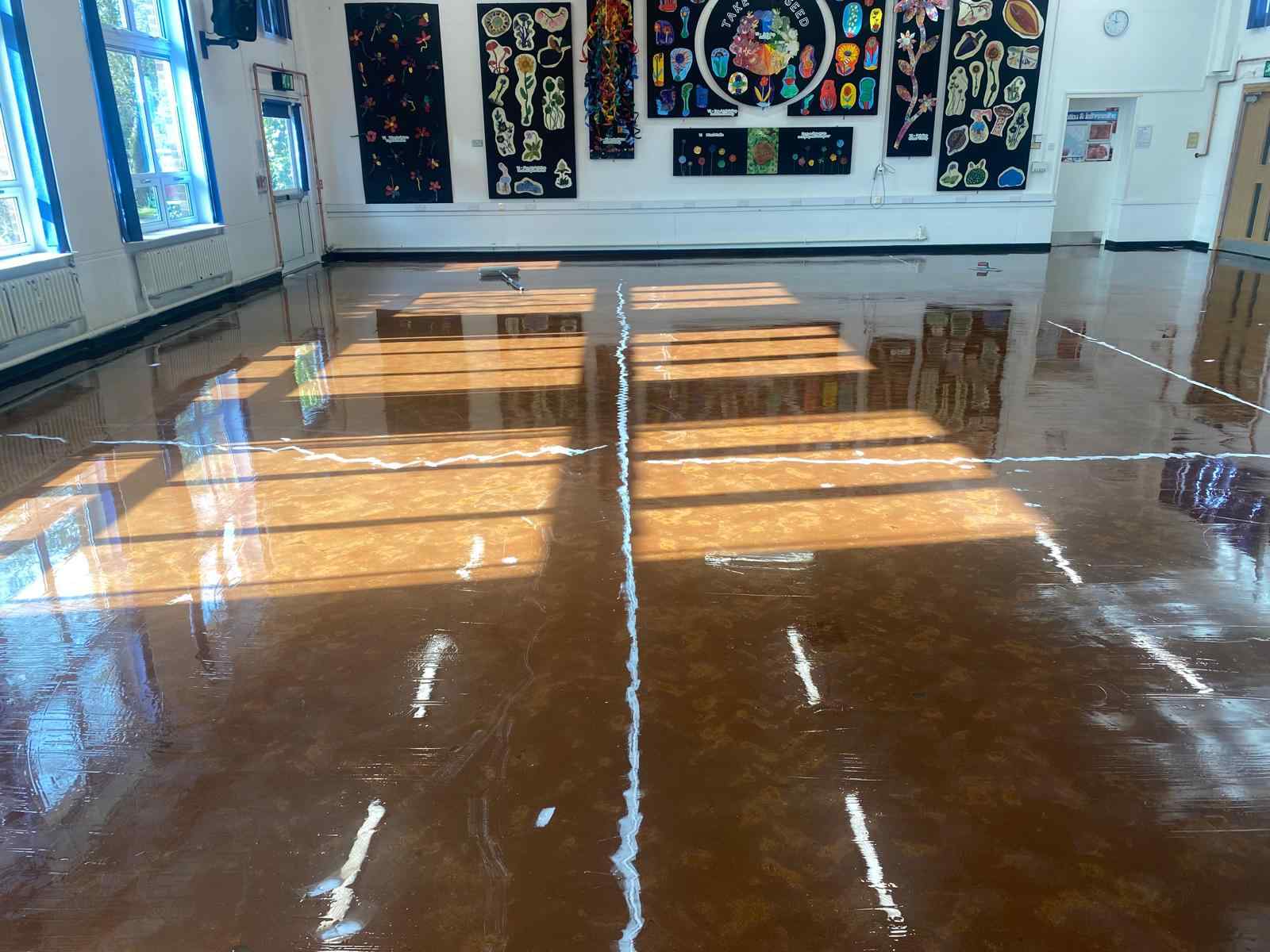

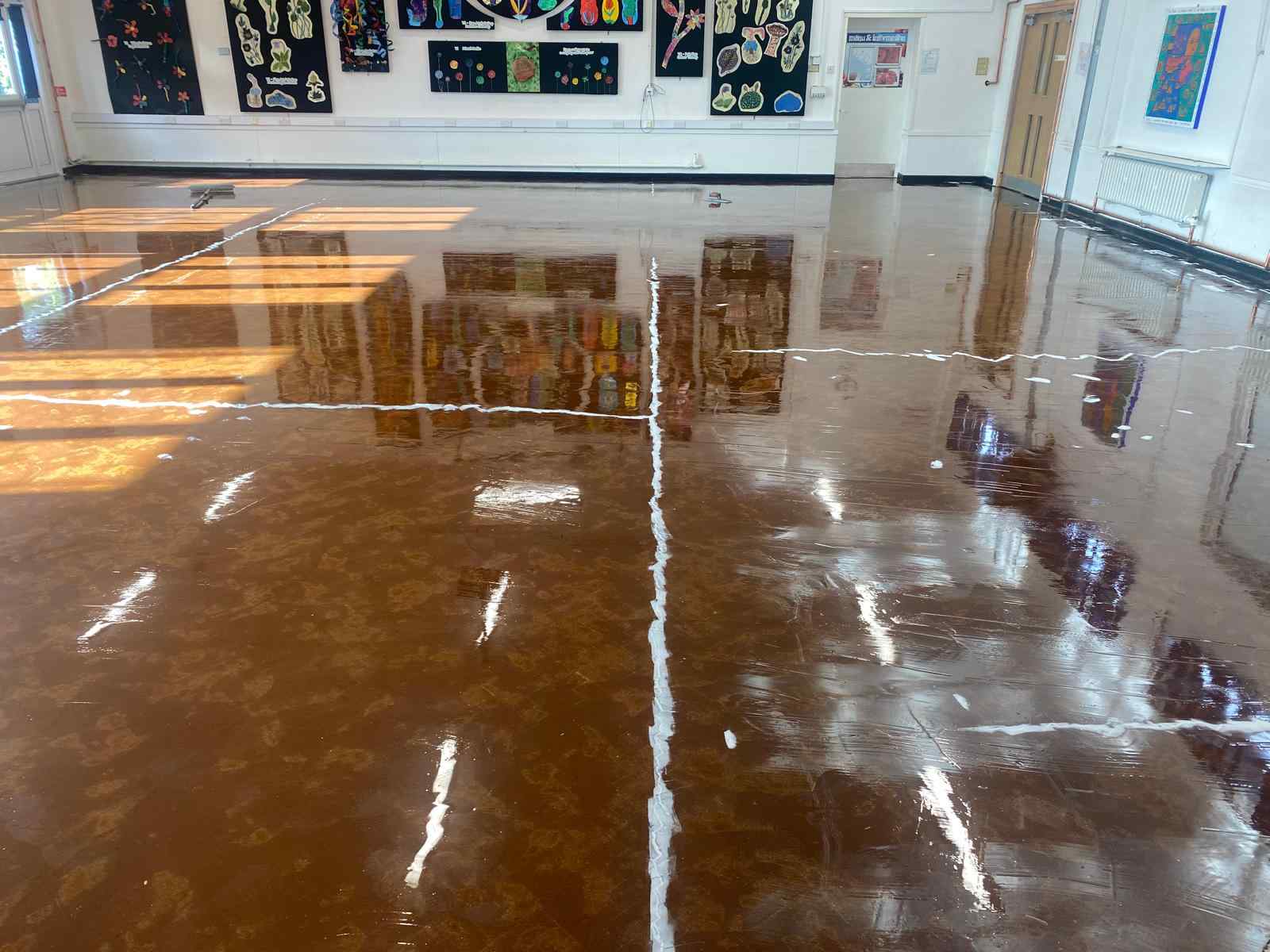

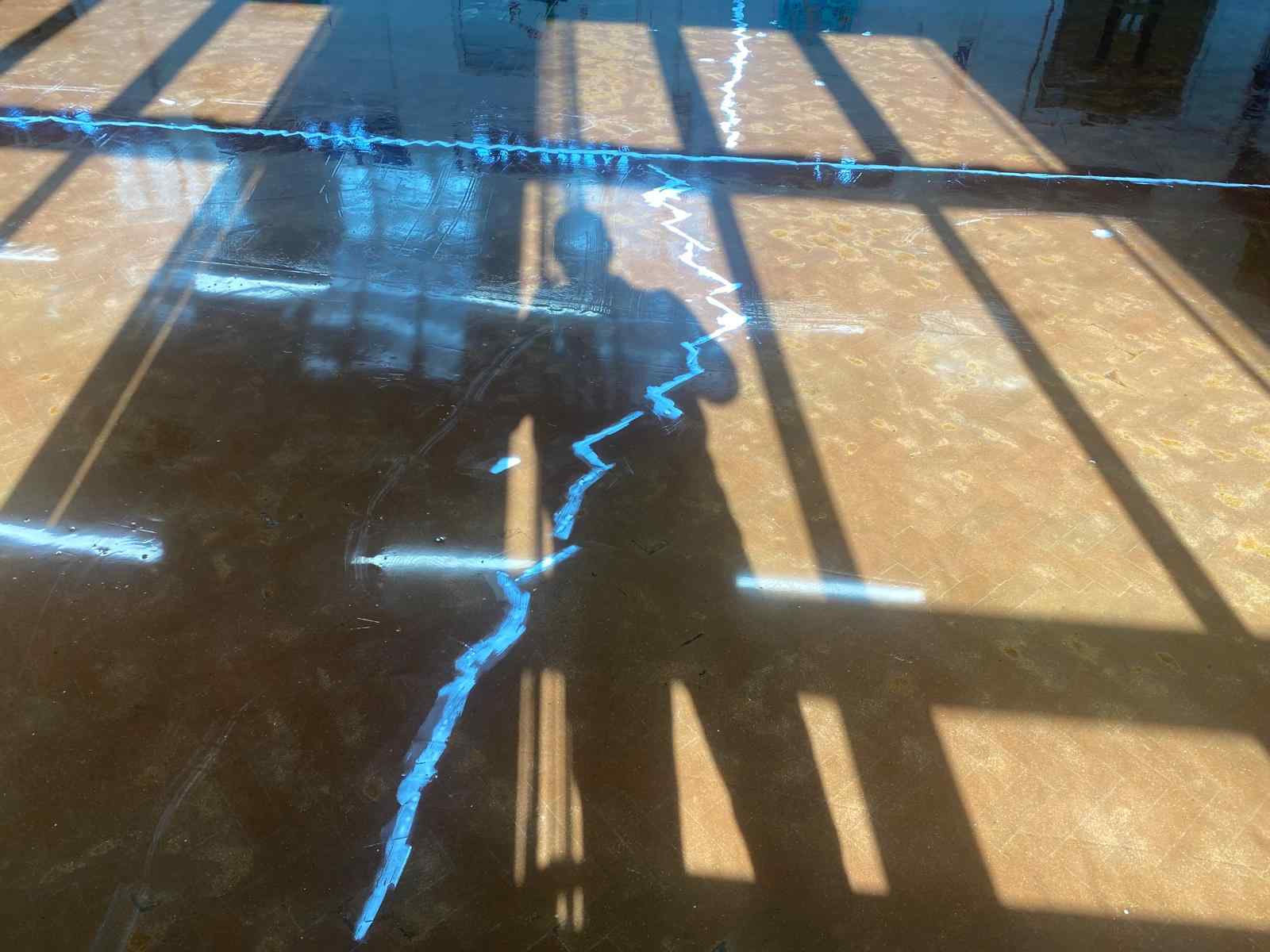

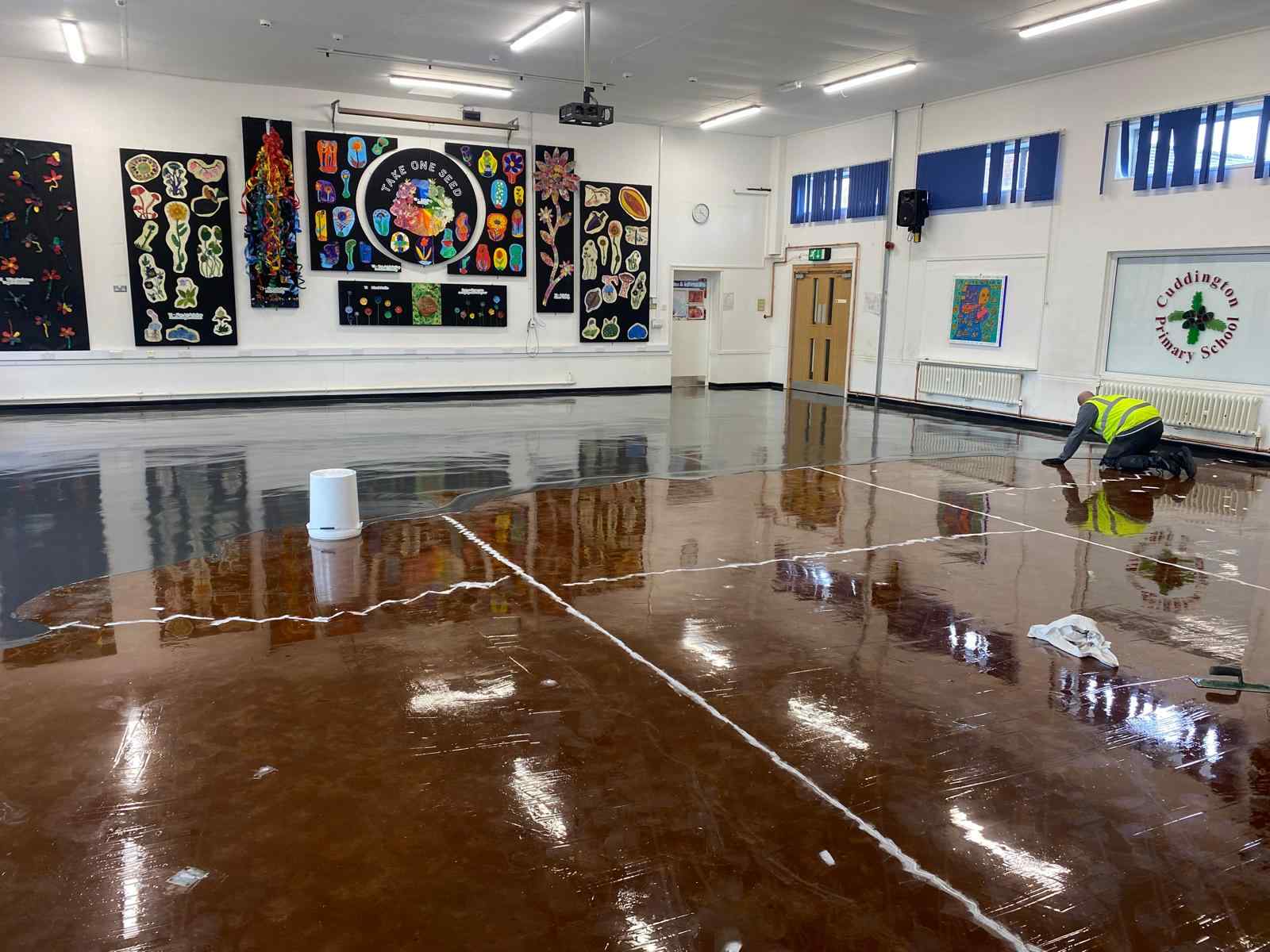

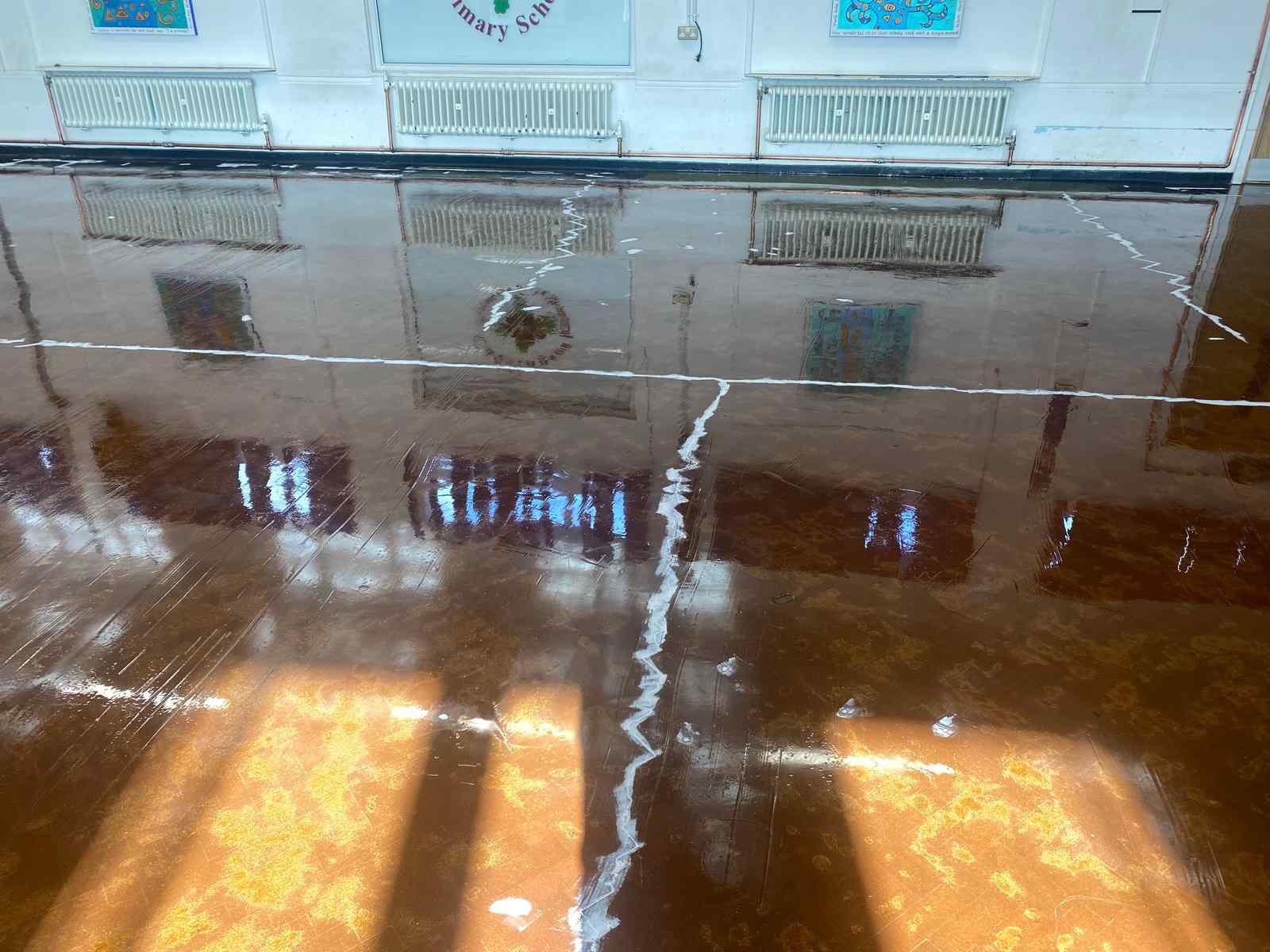

Once the primers had fully cured, we addressed all cracks, holes, and imperfections in the surface using a flexible repair system. This step was crucial in creating a smooth, uniform base for the final flooring application.
Frequently Asked Question
Why is thorough preparation and repair work crucial for the success of a resin flooring installation?
Thorough preparation and repair work is crucial for the success of a resin flooring installation for several reasons:
Adhesion: Proper surface preparation ensures that the resin flooring system adheres properly to the substrate. If the surface is not adequately prepared, the new flooring may not bond correctly, leading to premature failure, peeling, or delamination. How does poor adhesion affect the longevity of a resin flooring system?
Durability: Repairing cracks, holes, and other imperfections in the substrate before installing the resin flooring helps to create a solid, stable foundation. If these issues are not addressed, they can lead to further deterioration of the substrate and cause damage to the new flooring over time. What role does a stable foundation play in the overall durability of the flooring system?
Aesthetics: A well-prepared and repaired substrate ensures a smooth, even surface for the resin flooring installation. This results in a more attractive and professional-looking finished product. Imperfections in the substrate can telegraph through the new flooring, compromising the aesthetic appeal. How can a poorly prepared substrate impact the visual appearance of the finished resin flooring?
Cost-effectiveness: Investing time and effort in thorough preparation and repair work can save money in the long run. By addressing issues with the substrate before installation, you can avoid costly repairs or replacements down the line due to premature flooring failure. Why is it more cost-effective to invest in proper preparation and repair work upfront?
Thorough preparation and repair work are essential for achieving a long-lasting, durable, and visually appealing resin flooring installation. Neglecting these crucial steps can lead to a host of problems that compromise the quality and longevity of the flooring system.
Installation Process
With the preparation and repair work complete, we moved on to the installation of the main flooring system. The process began with the application of two coats of primer, each requiring overnight curing time. This thorough priming ensured optimal adhesion of the subsequent layers.

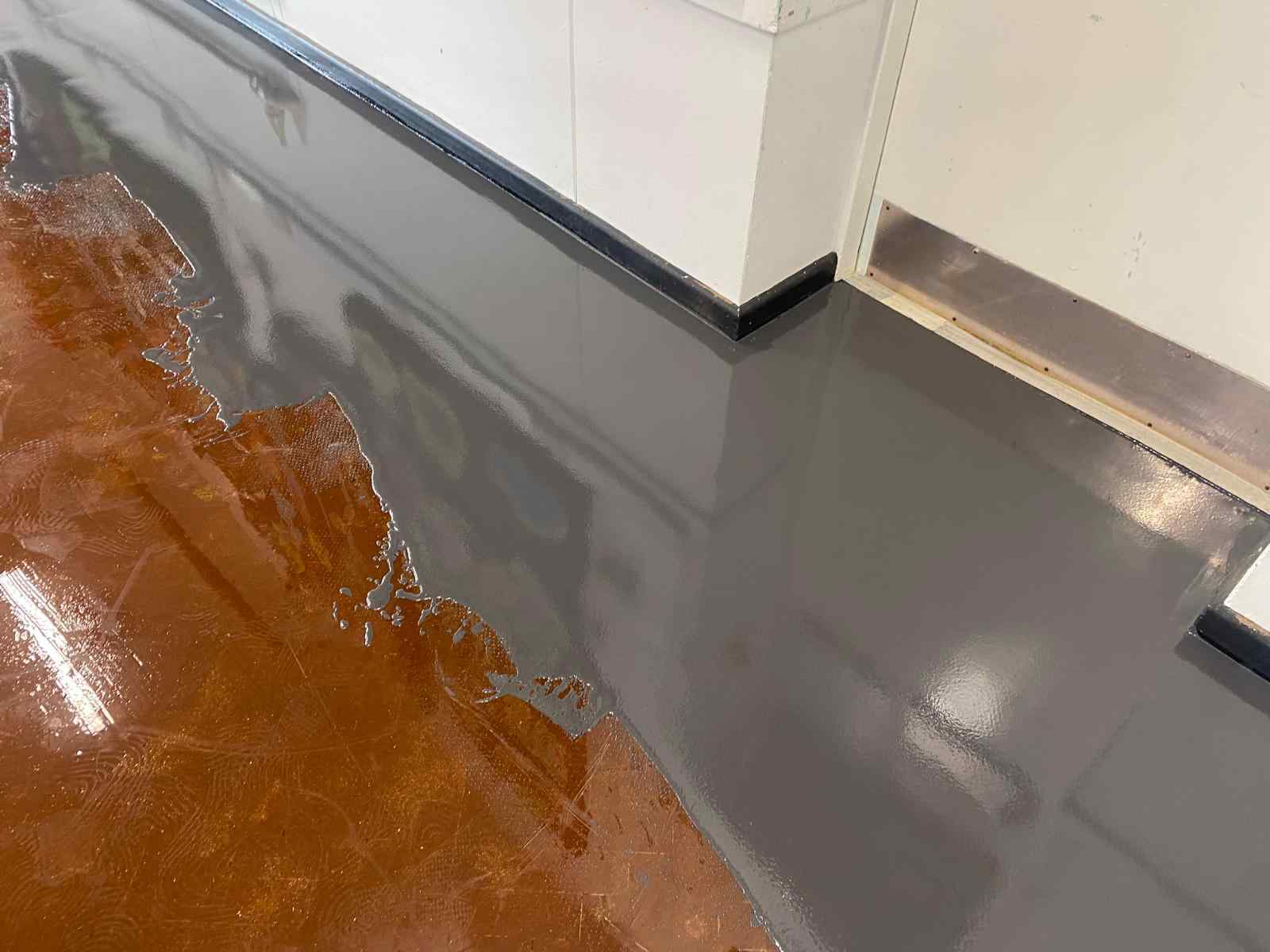

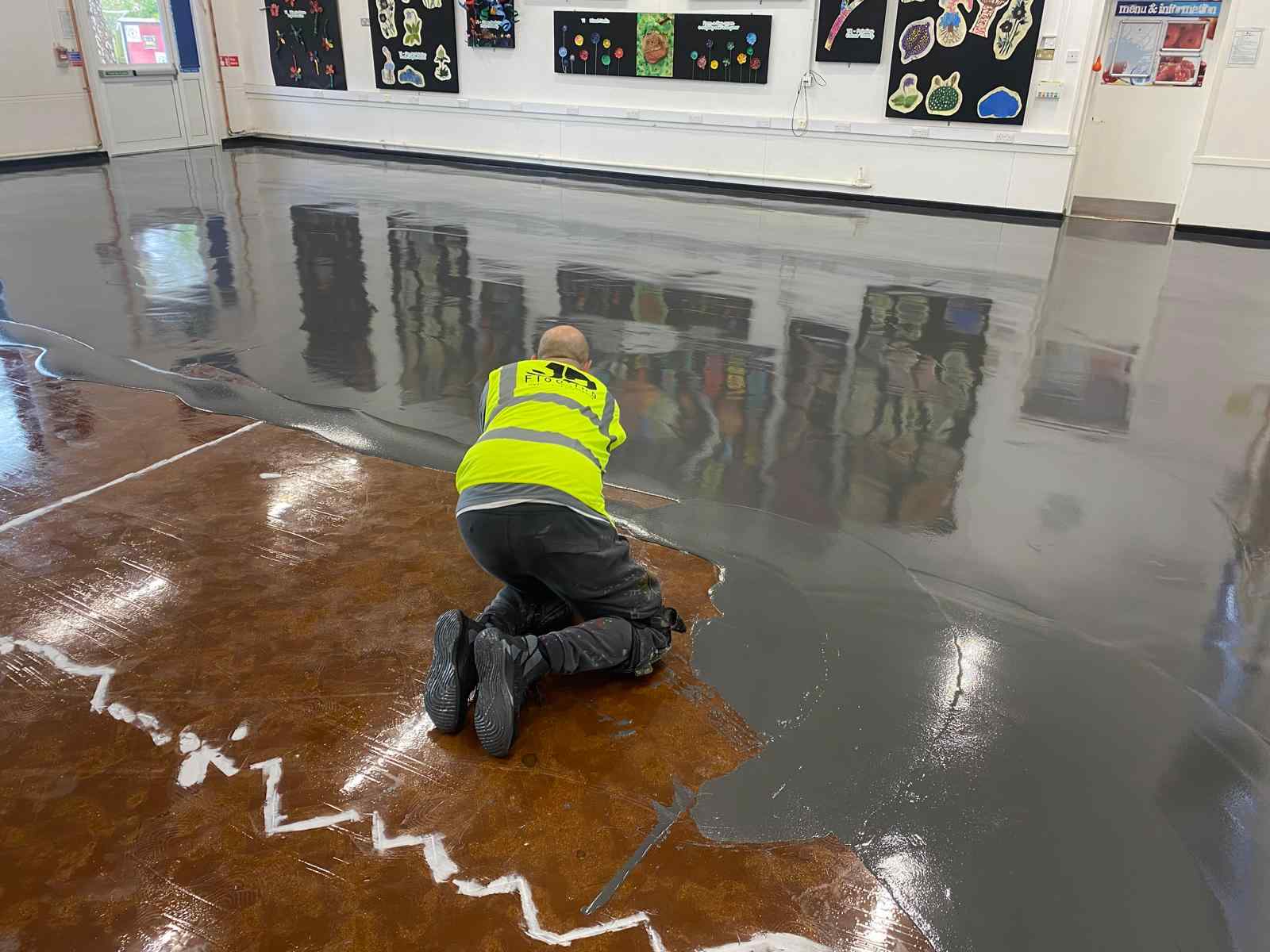

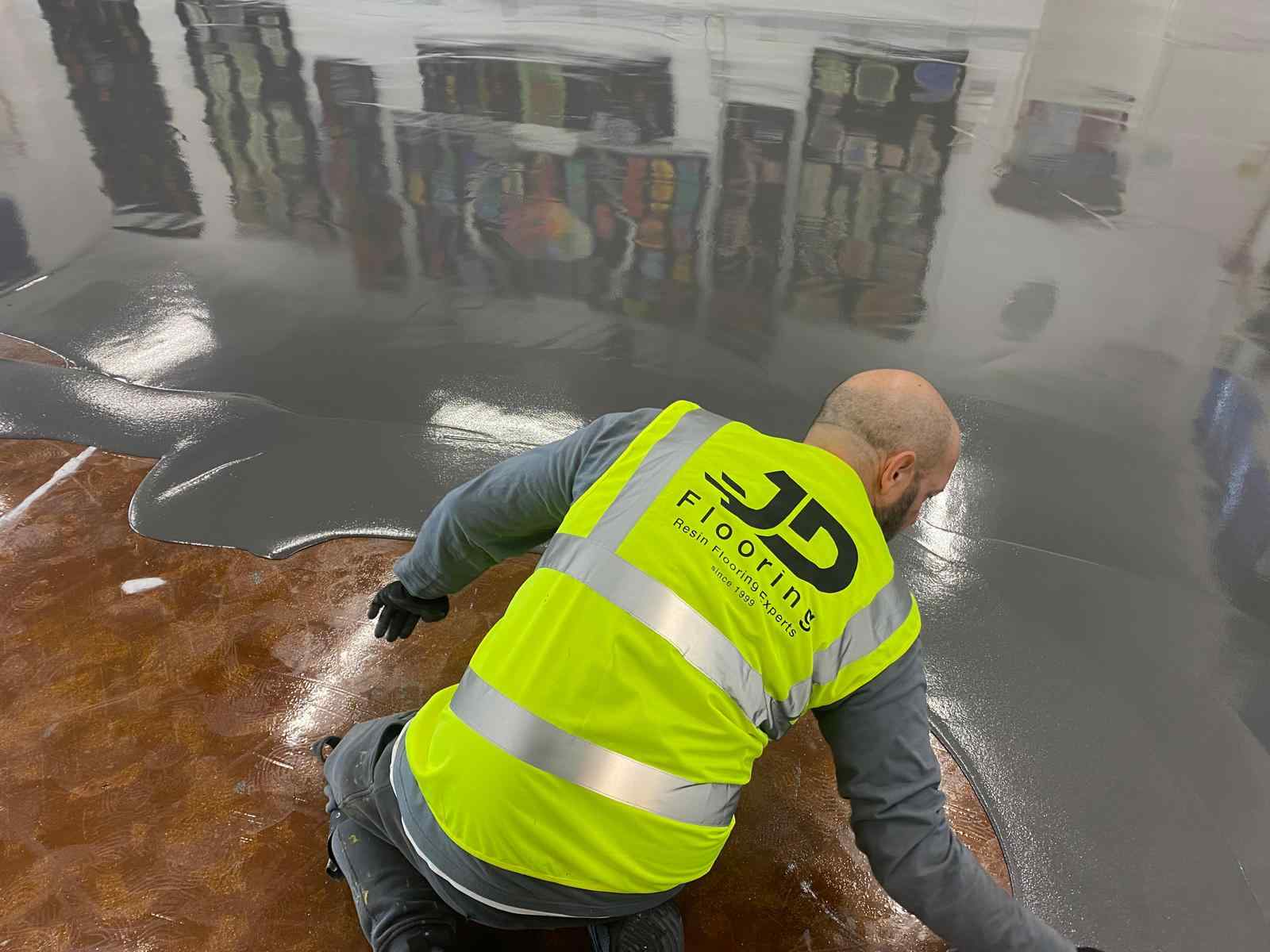

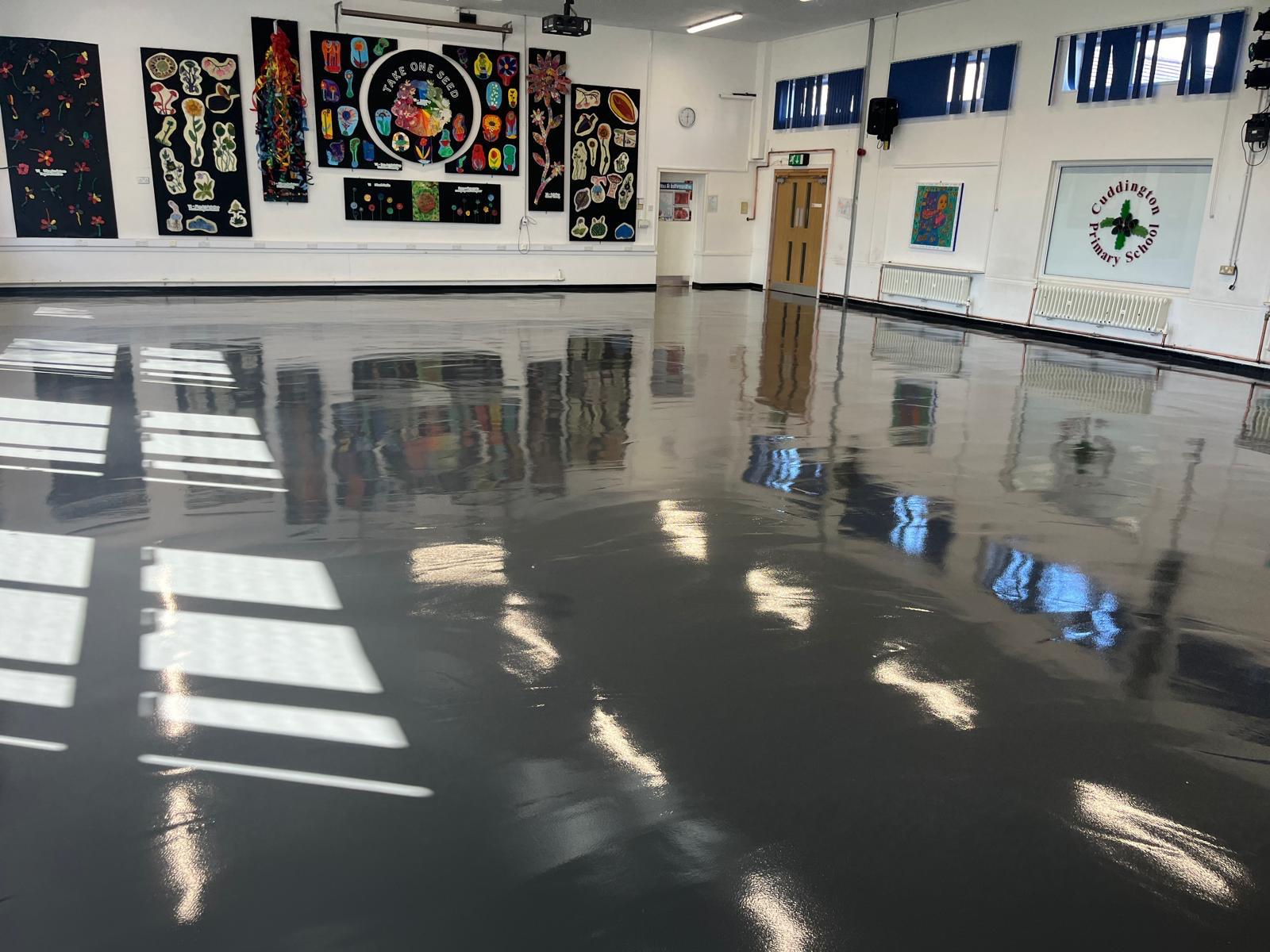

Following the priming stage, we installed the flexible polyurethane 3mm screed system. This was applied using a squeegee to achieve an even distribution across the entire floor area. To eliminate any trapped air and create a uniform finish, we used a spike roller immediately after application.

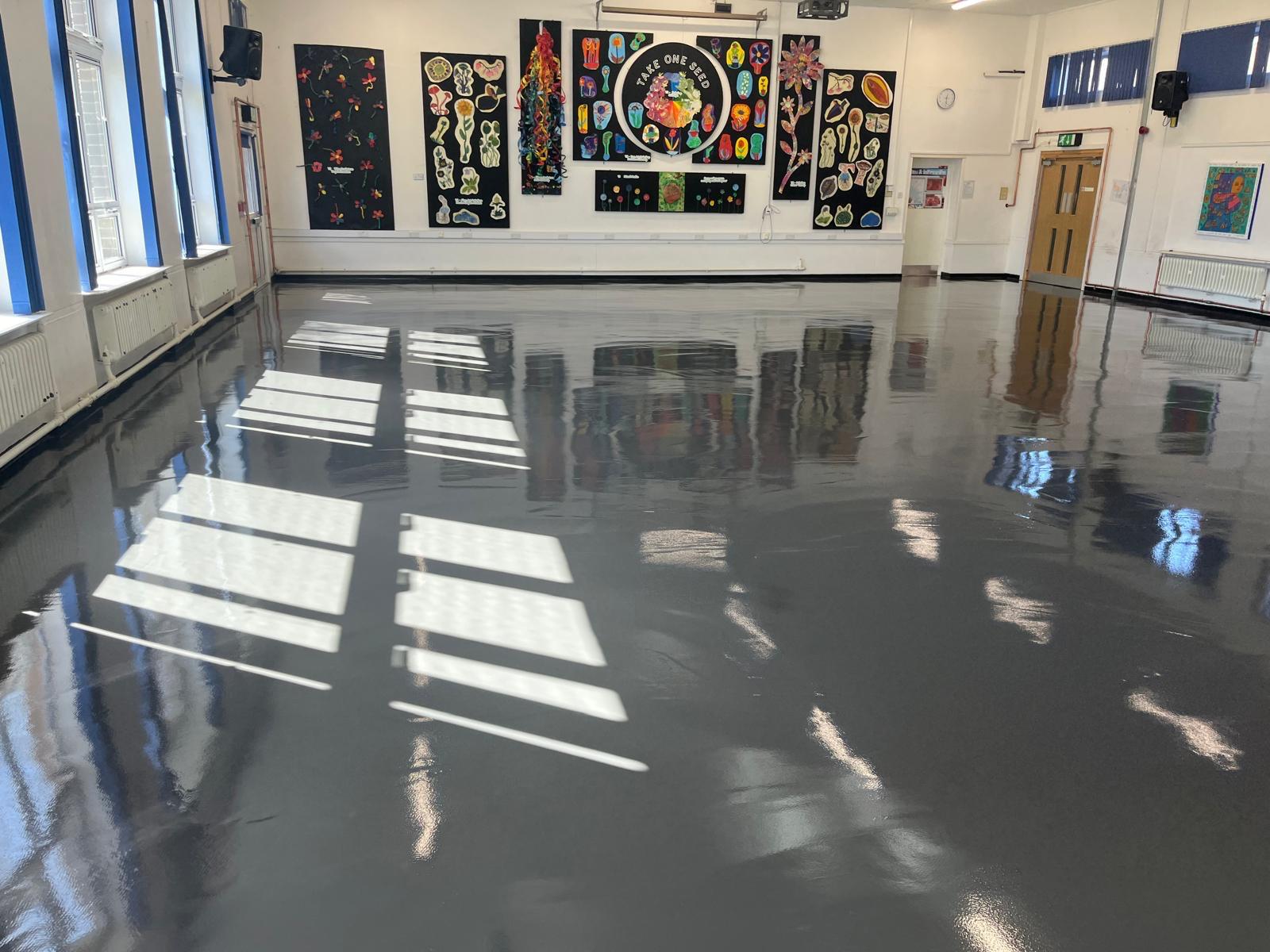

It’s worth noting that while the system appears high gloss during installation, it cures to a more matte finish. This transformation not only enhances the aesthetic appeal of the space but also contributes to its functionality, providing an ideal surface for the various activities that take place in the hall.
Resin Flooring Installation Case Study
Resin Flooring Installation Case Study
Resin Flooring Installation Case Study
Resin Flooring Installation Case Study
Resin Flooring Installation Case Study
Resin Flooring Installation Case Study
Resin Flooring Installation Case Study
Resin Flooring Type Used - Self Smoothing Resin Flooring
Seamless Finish
Introducing our Self Smoothing Resin Flooring, the ultimate flooring solution for those seeking a seamless, professional finish without the hassle. Ideal for commercial and industrial spaces, this innovative flooring option provides a smooth, level surface that’s both durable and visually appealing.
Time-Saving Installation
Save valuable time and effort with our Self Smoothing Resin Flooring’s easy-to-install formula. Its self-levelling properties ensure a consistent, even surface without the need for extensive manual labour or specialised tools. Enjoy the convenience of a quick and efficient installation process that delivers outstanding results.
Hygienic and Easy to Clean
Maintaining a clean and sanitary environment is crucial, especially in commercial and industrial settings. Our Self Smoothing Flooring offers a seamless, non-porous surface that’s easy to clean and resistant to bacteria, making it perfect for facilities that require strict hygiene standards, such as hospitals, restaurants, and laboratories.
Self Smoothing Characteristics
| Feature | Details |
| Application | Known as self-levelling or self-smoothing system |
| Intended Use | Medium Duty to Heavy Duty use |
| Thickness | 2mm-4mm |
| UV Resistance | UV stable grades available |
| Slip Resistance | Resistance in wet conditions subject to aggregate scatter inclusion |
| Anticipated Life | Medium Duty 6-8 Years / Heavy Duty 3-4 Years |
| Chemicals | Very good resistance to chemical spillage |
| Cleanability | Very good cleaning properties |
| Price Indicator | £20 to £30 per square metre (includes preparation, labour & materials) |
JD Flooring Guarantee
- Manufacturer Backed Warranties
- 23 years Project Bank
- Free Surveys and Advice
- Industry Approved Contractors
- Quality Assurance ISO9001
- Quality Assurance ISO14001
Client Satisfaction and Feedback
The true measure of success for any flooring project lies in the satisfaction of our clients. In this case, we were delighted to receive overwhelmingly positive feedback just days after the installation was completed. The facilities manager contacted us to express how pleased everyone at the school was with the new flooring.
The renovated hall floor met and exceeded all the objectives set at the beginning of the project. It was immediately put into full use, demonstrating its versatility and durability. The surface proved to be easy to clean, addressing the previous issues with dust and maintenance.
Most importantly, the new flooring successfully catered to all three primary uses of the space: dining, sports activities, and general assembly. The soft underfoot feel provided by the flexible polyurethane system offered comfort for students during meal times, while its durability and performance characteristics made it ideal for sports and high-traffic scenarios.
This project exemplifies JD Flooring Limited’s commitment to delivering tailored flooring solutions that not only meet but exceed our clients’ expectations. By combining our extensive experience with high-quality materials and meticulous workmanship, we were able to transform this ageing school hall into a modern, multi-functional space that will serve the school community for years to come.
