Resin Flooring Demarcation Case Study – Leading Logistics Company, Wolverhampton
Leading Logistics Company
Project Overview
A prominent UK logistics company in Wolverhampton approached JD Flooring Limited to implement a comprehensive resin flooring demarcation system. As a valued client of over five years, they required an enhanced traffic management solution that would align with their 5S certification standards. The primary objective was to create clear signage and directional indicators for both HGV vehicles and the facility’s 100-plus forklift truck operators.
The project encompassed the installation of a systematic traffic flow pattern within their warehouse facility. Having previously completed annual maintenance coatings in their high-traffic areas, our team possessed intimate knowledge of the facility’s operational requirements and existing floor conditions. This proved invaluable in developing a solution that would maintain safety standards while optimising vehicular movement throughout the space.
Assessment and Recommendation
Our initial assessment focused on the sealed concrete surfaces where the resin flooring demarcation system would be installed. Given our extensive experience with the facility’s annual red coating maintenance programme, we recognised that proper surface preparation would be crucial for achieving a lasting bond between the existing substrate and the new coating system.
Based on our evaluation, we recommended a light flatbed grinding process to ensure optimal adhesion. Additionally, we specified a heavy-duty epoxy line marking system that would withstand the intense traffic patterns and provide clear visual guidance for both HGV drivers and forklift operators. This solution was designed to maintain its integrity under heavy use while supporting the facility’s safety protocols.
Preparation, Preparation, Preparation. It’s the Key
95% of all resin flooring installation failure is due to poor sub floor preparation
Preparation and Repair Details

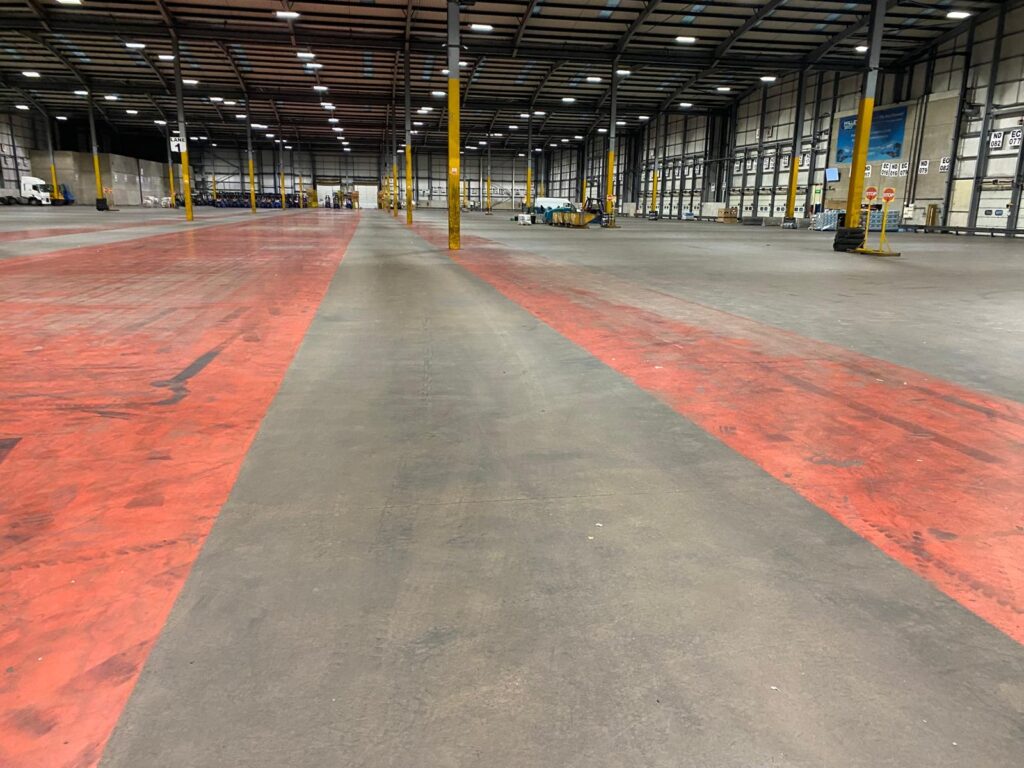

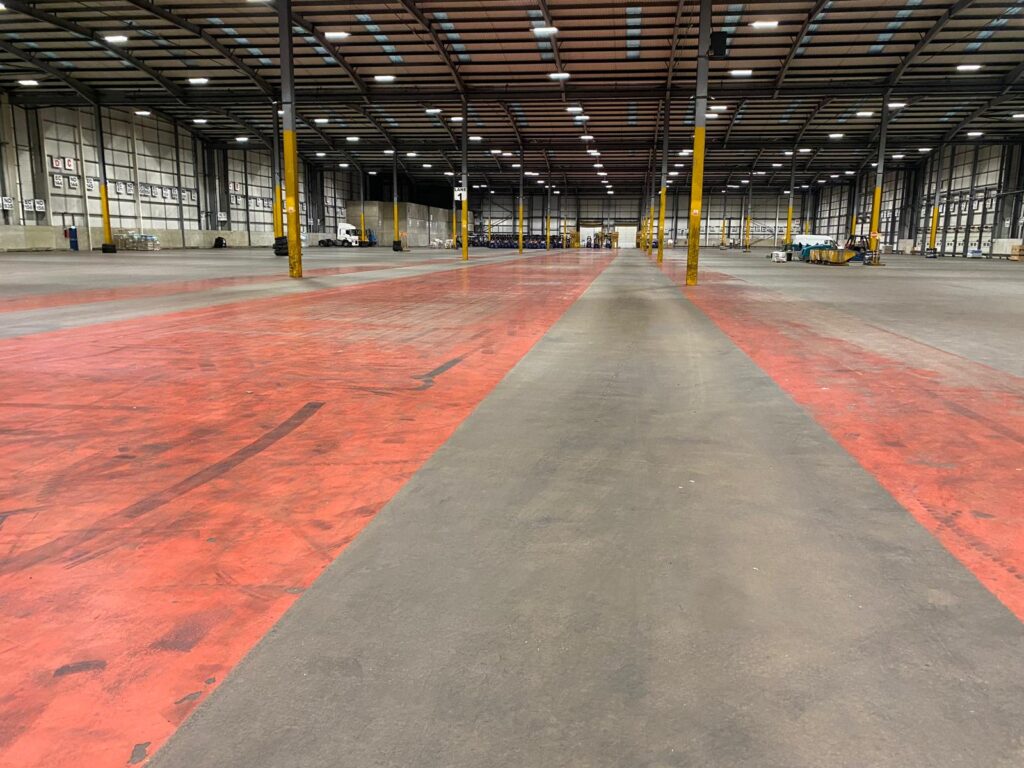

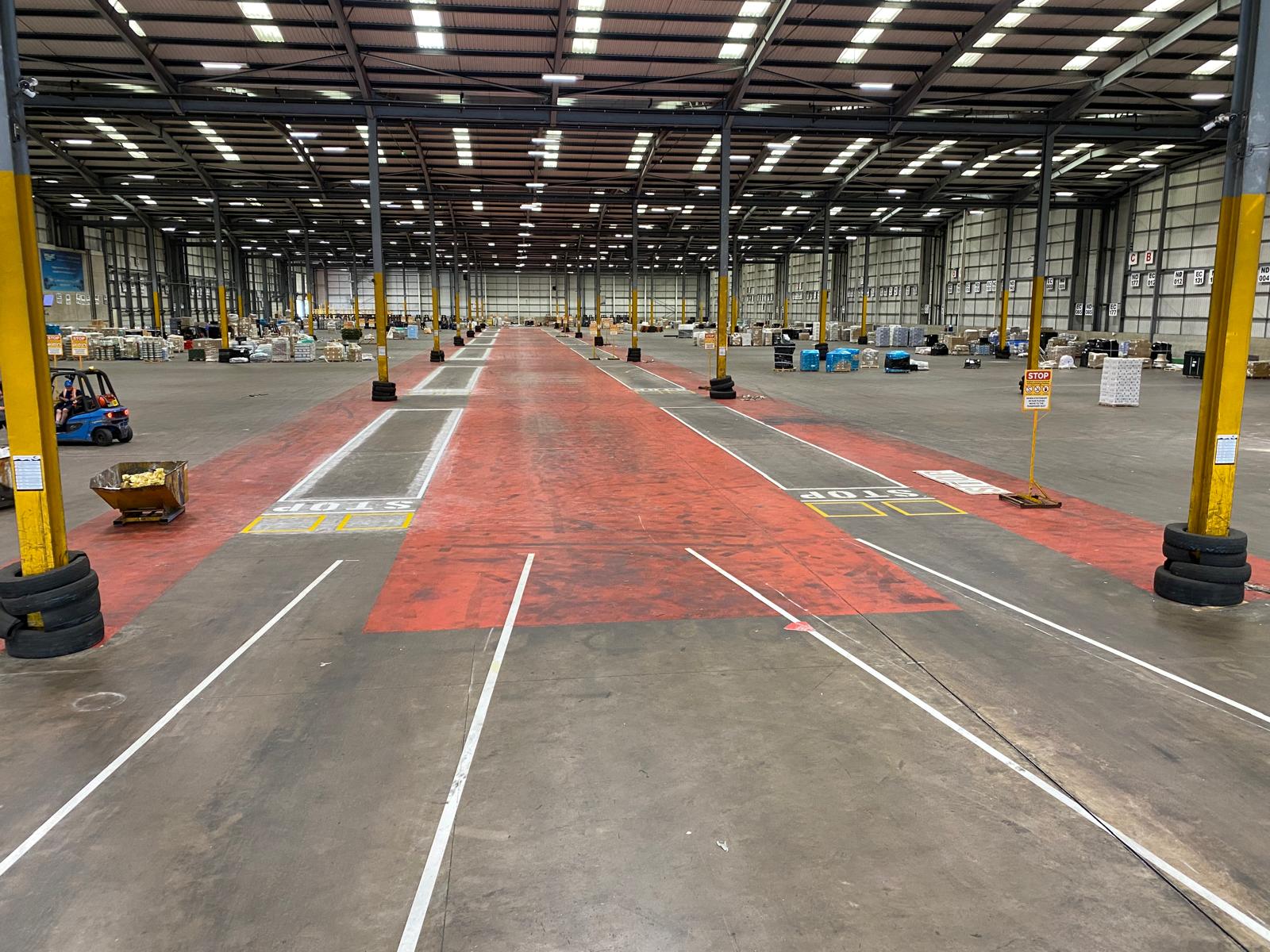

The project area consisted of twelve designated HGV parking bays, each measuring 30 metres in length by 3.5 metres wide. These spaces were strategically designed with specific gaps between the bay ends and STOP sign positions, providing clear instructions for incoming drivers and forklift operators. This precise layout required meticulous preparation to ensure the durability of the resin flooring demarcation system.
Our preparation process began with the deployment of a single-head diamond tip floor grinder across all designated areas. Following the grinding phase, our team conducted targeted repairs where necessary. The entire surface underwent thorough sweeping and vacuum cleaning to eliminate any debris or contaminants that could compromise the coating’s adhesion.
Frequently Asked Question
Why is thorough preparation and repair work crucial for the success of a resin flooring installation?
Thorough preparation and repair work is crucial for the success of a resin flooring installation for several reasons:
Adhesion: Proper surface preparation ensures that the resin flooring system adheres properly to the substrate. If the surface is not adequately prepared, the new flooring may not bond correctly, leading to premature failure, peeling, or delamination. How does poor adhesion affect the longevity of a resin flooring system?
Durability: Repairing cracks, holes, and other imperfections in the substrate before installing the resin flooring helps to create a solid, stable foundation. If these issues are not addressed, they can lead to further deterioration of the substrate and cause damage to the new flooring over time. What role does a stable foundation play in the overall durability of the flooring system?
Aesthetics: A well-prepared and repaired substrate ensures a smooth, even surface for the resin flooring installation. This results in a more attractive and professional-looking finished product. Imperfections in the substrate can telegraph through the new flooring, compromising the aesthetic appeal. How can a poorly prepared substrate impact the visual appearance of the finished resin flooring?
Cost-effectiveness: Investing time and effort in thorough preparation and repair work can save money in the long run. By addressing issues with the substrate before installation, you can avoid costly repairs or replacements down the line due to premature flooring failure. Why is it more cost-effective to invest in proper preparation and repair work upfront?
Thorough preparation and repair work are essential for achieving a long-lasting, durable, and visually appealing resin flooring installation. Neglecting these crucial steps can lead to a host of problems that compromise the quality and longevity of the flooring system.
Installation Process

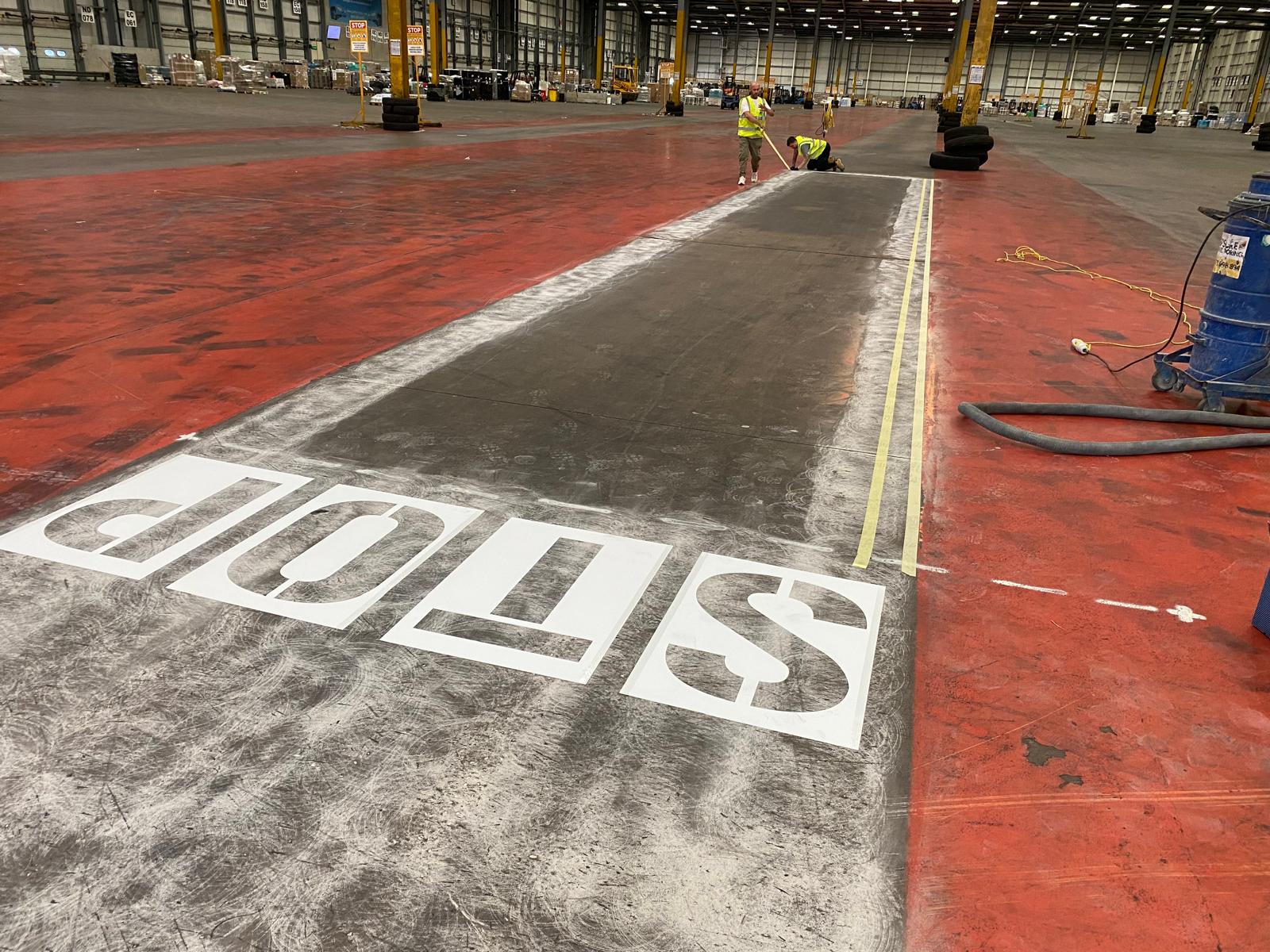

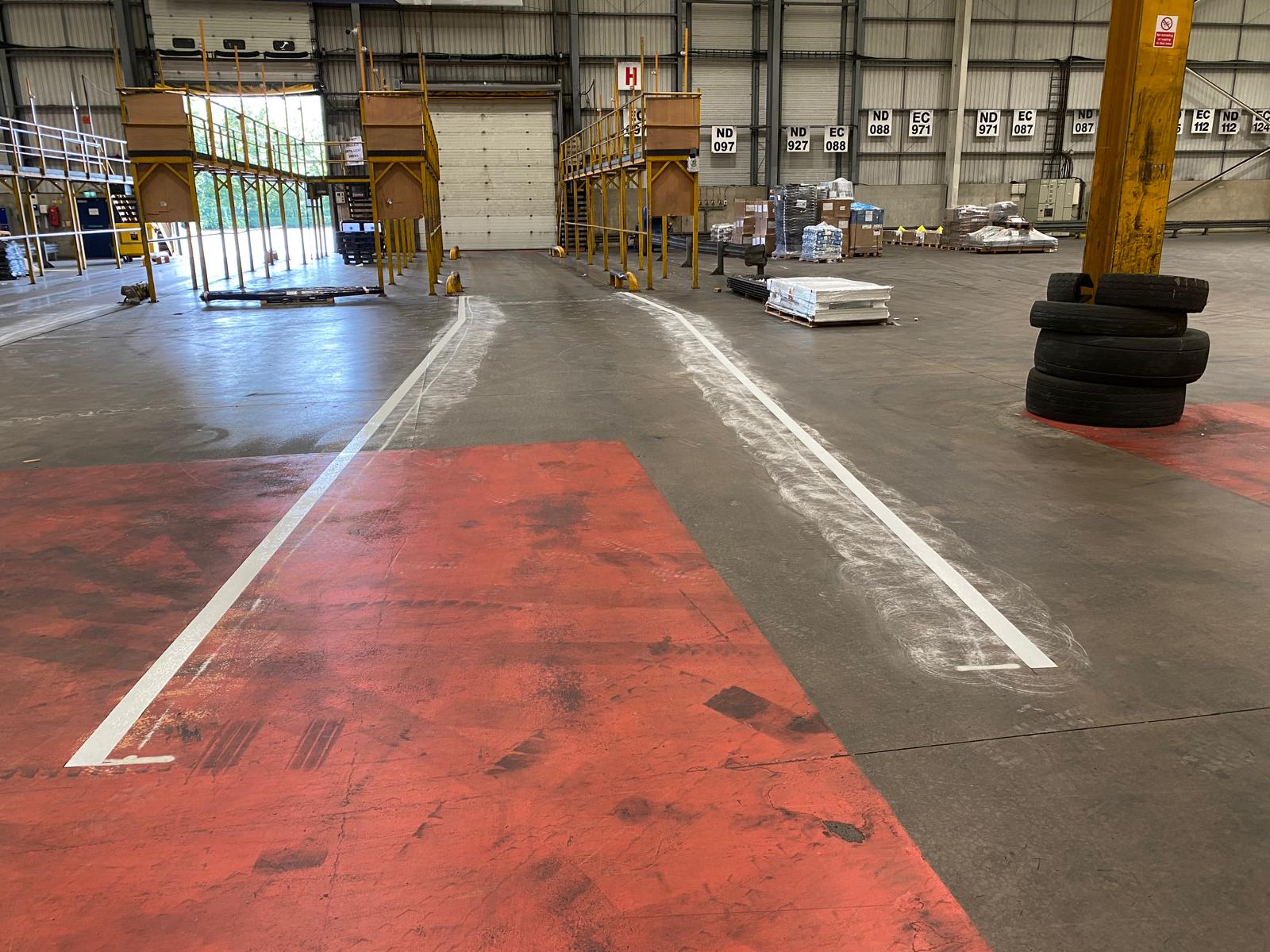

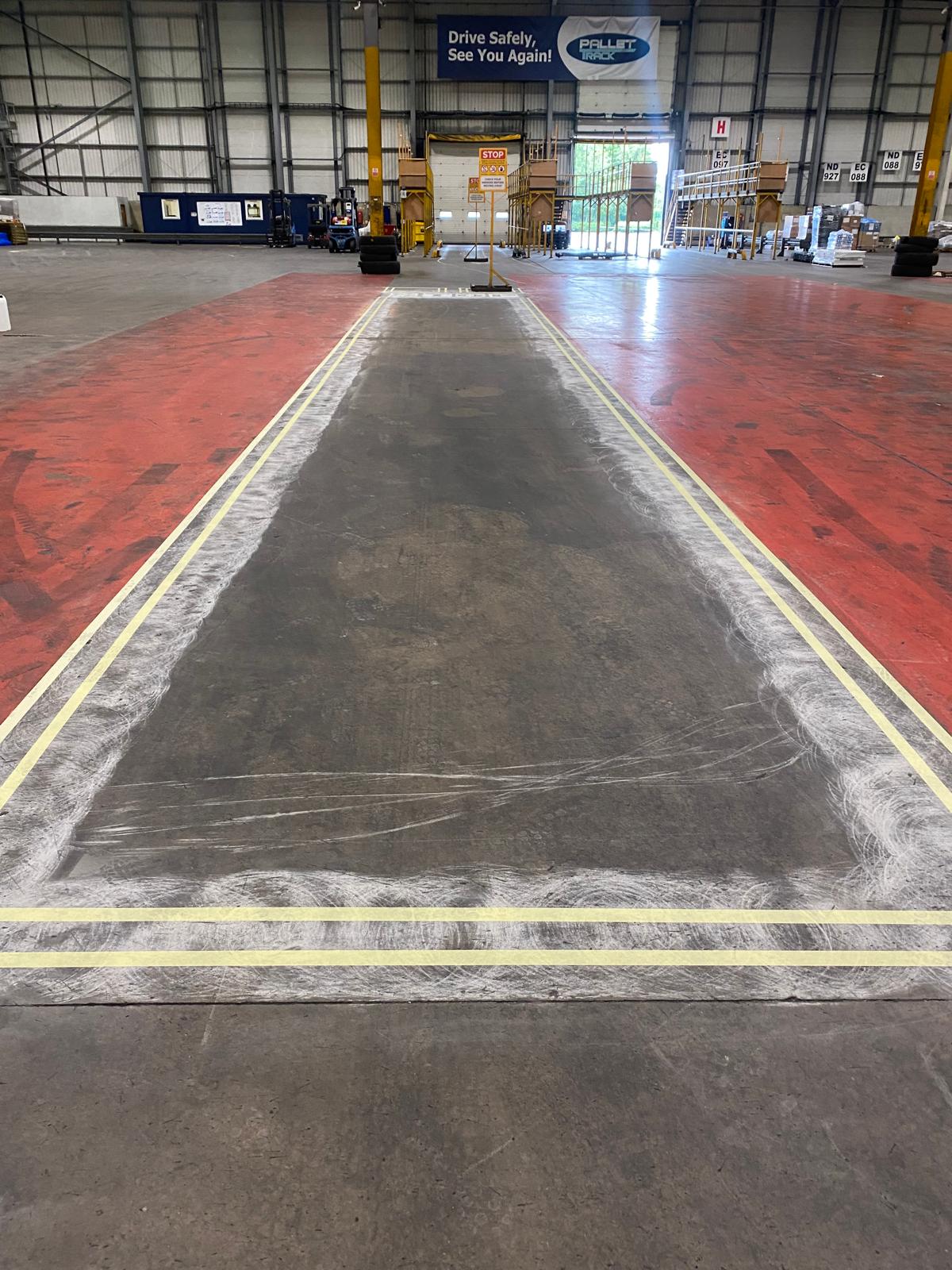

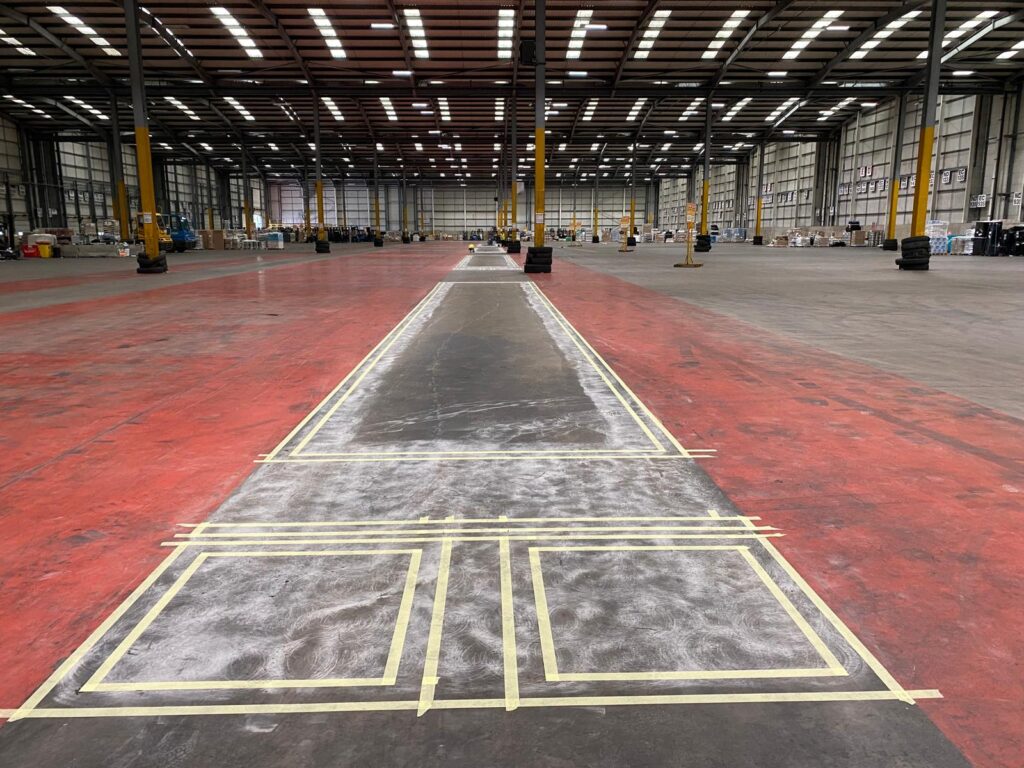

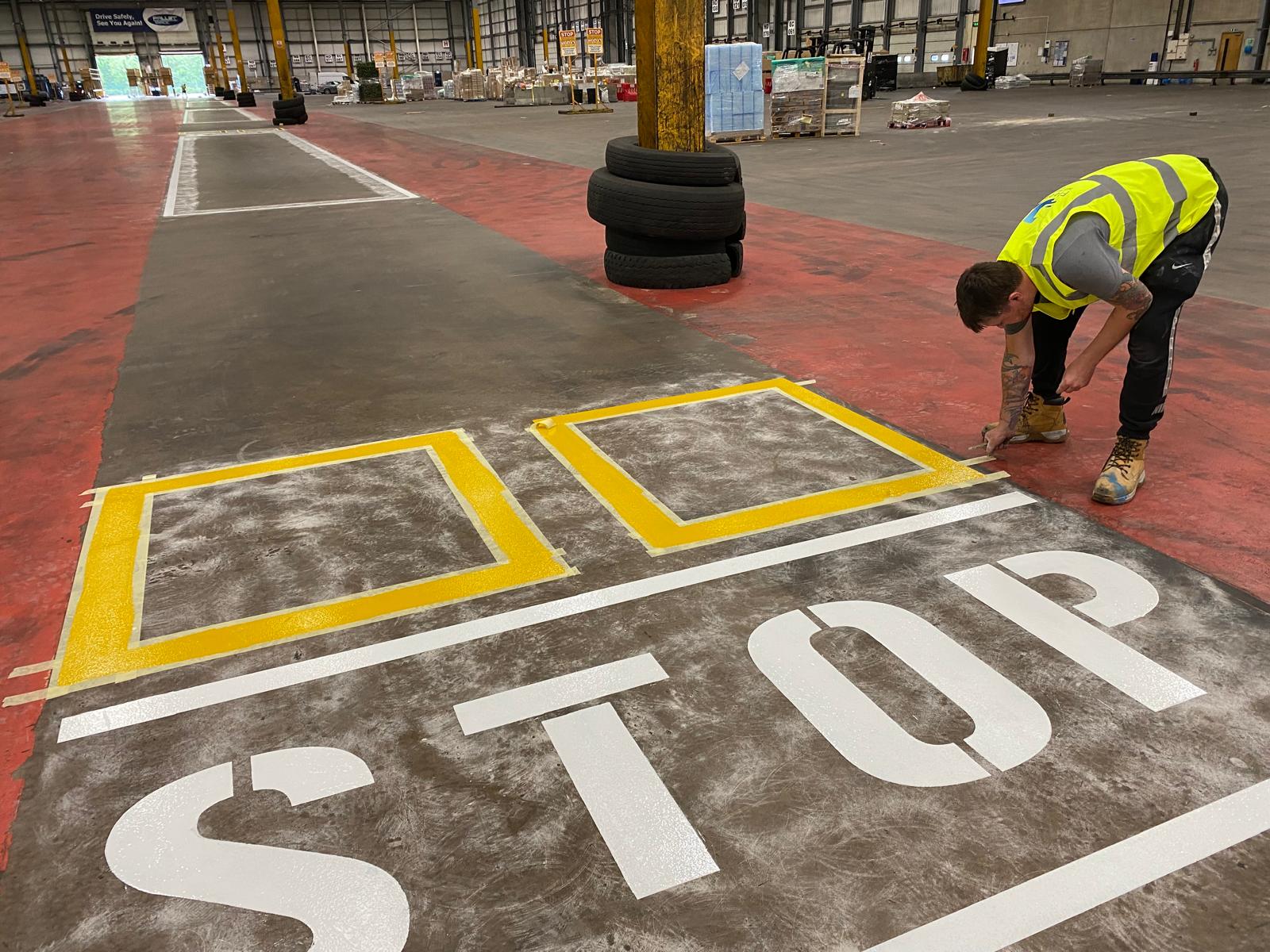

The installation process commenced with precise tape application following the client’s specified drawings. Our team installed over 1,000 linear metres of tape, ensuring exact positioning for line breaks and STOP signs. Each of the twelve parking bays required identical demarcation, demanding exceptional attention to detail and precise measurements throughout the installation process.

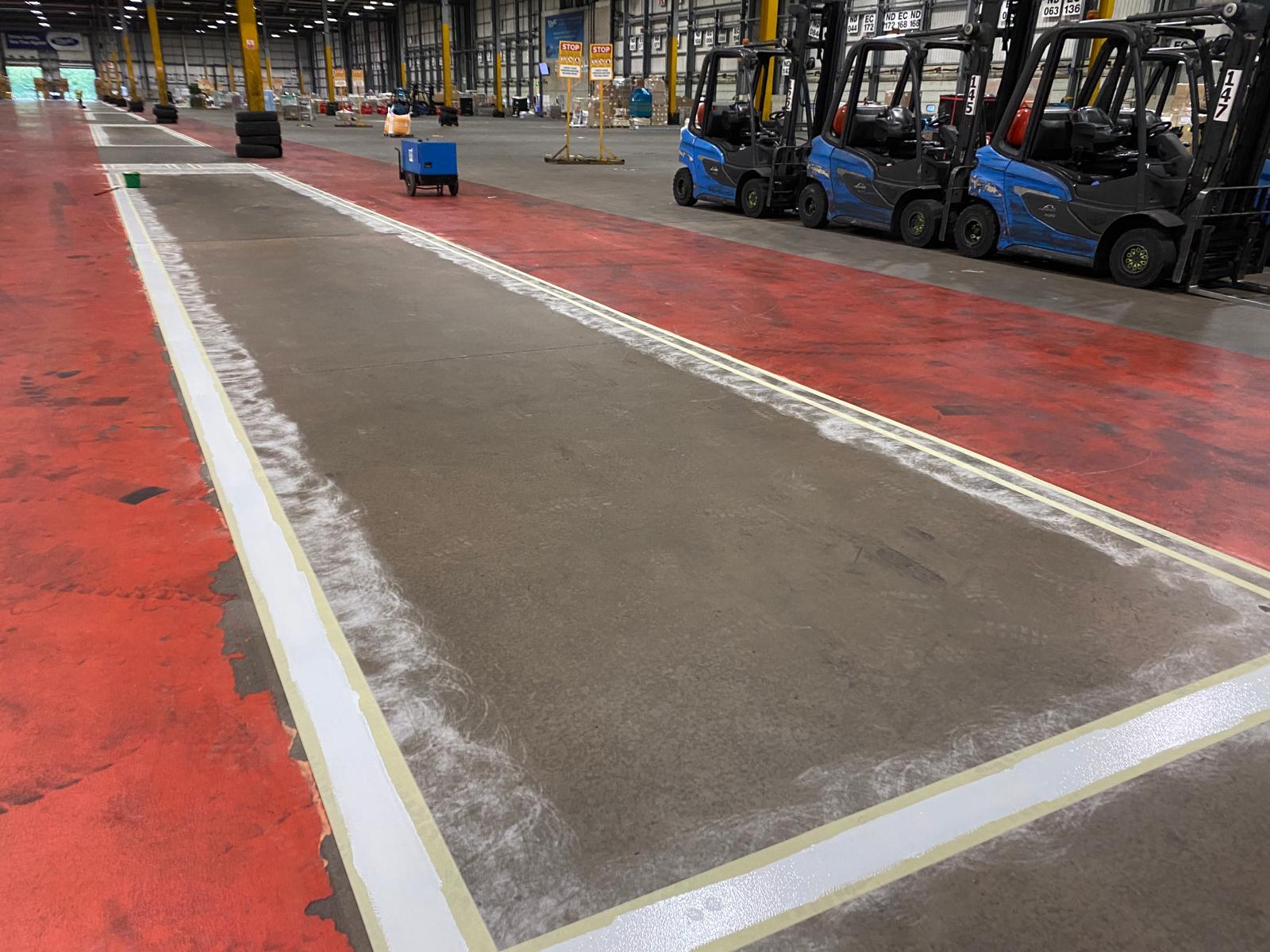

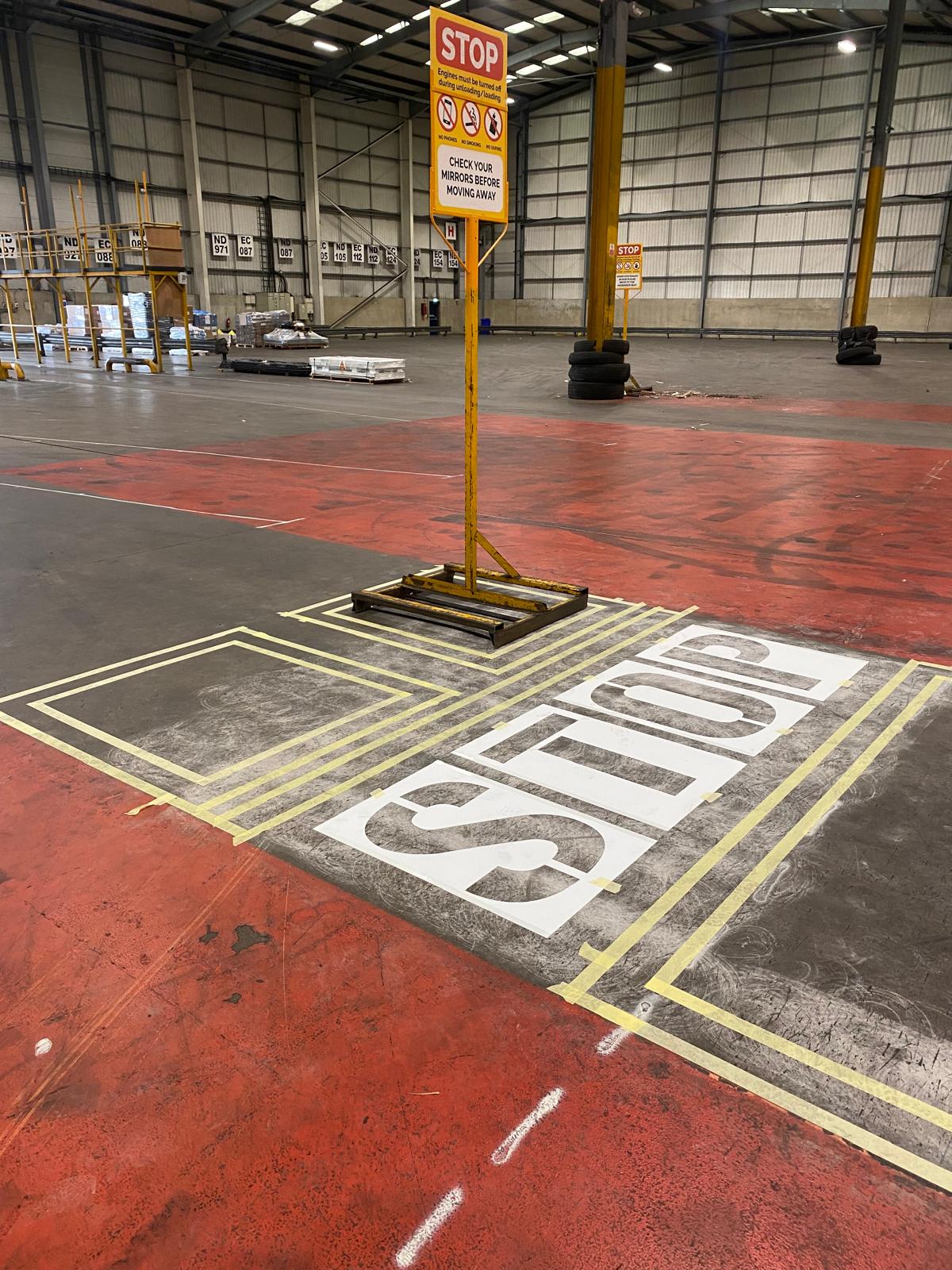

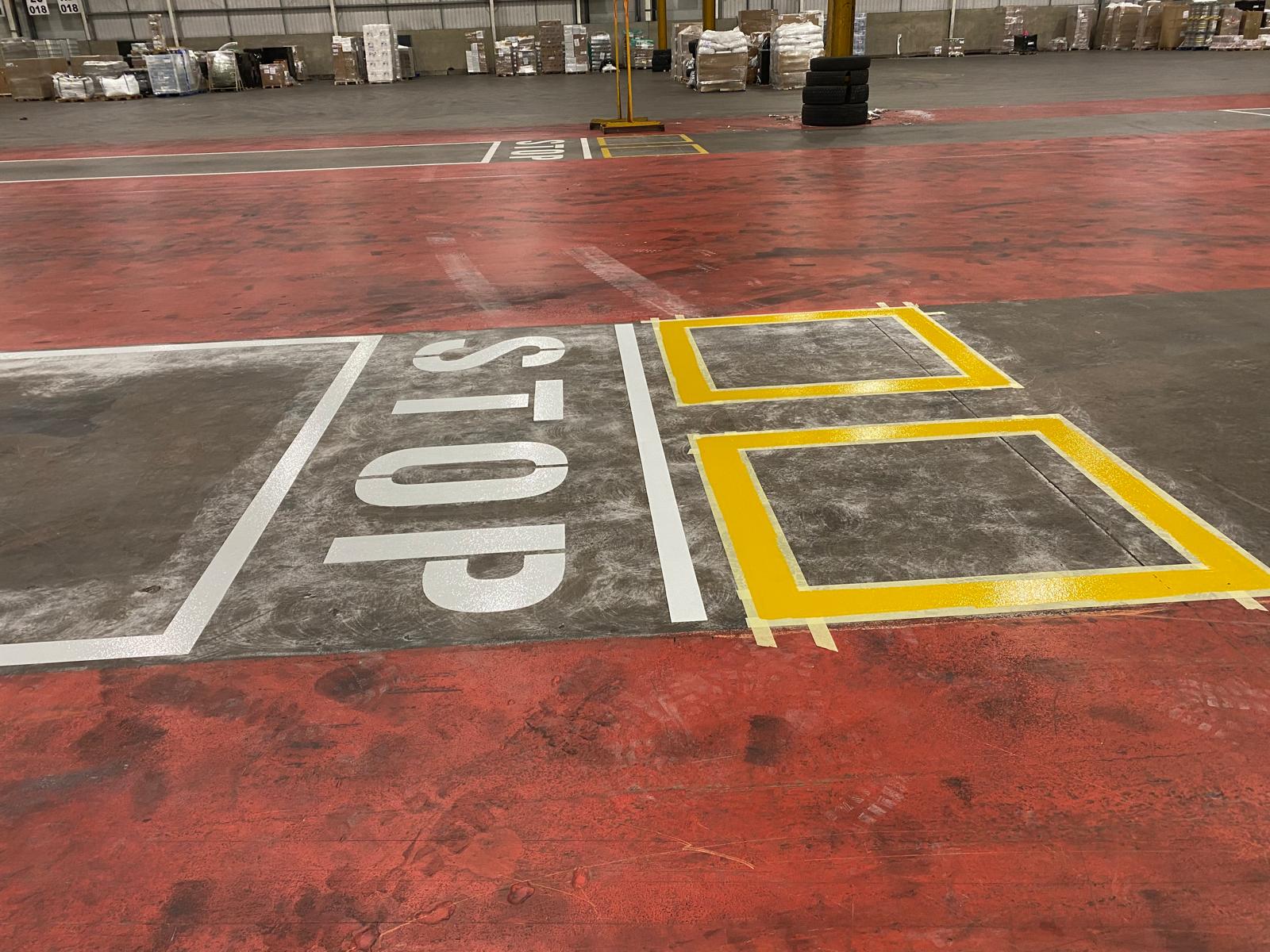

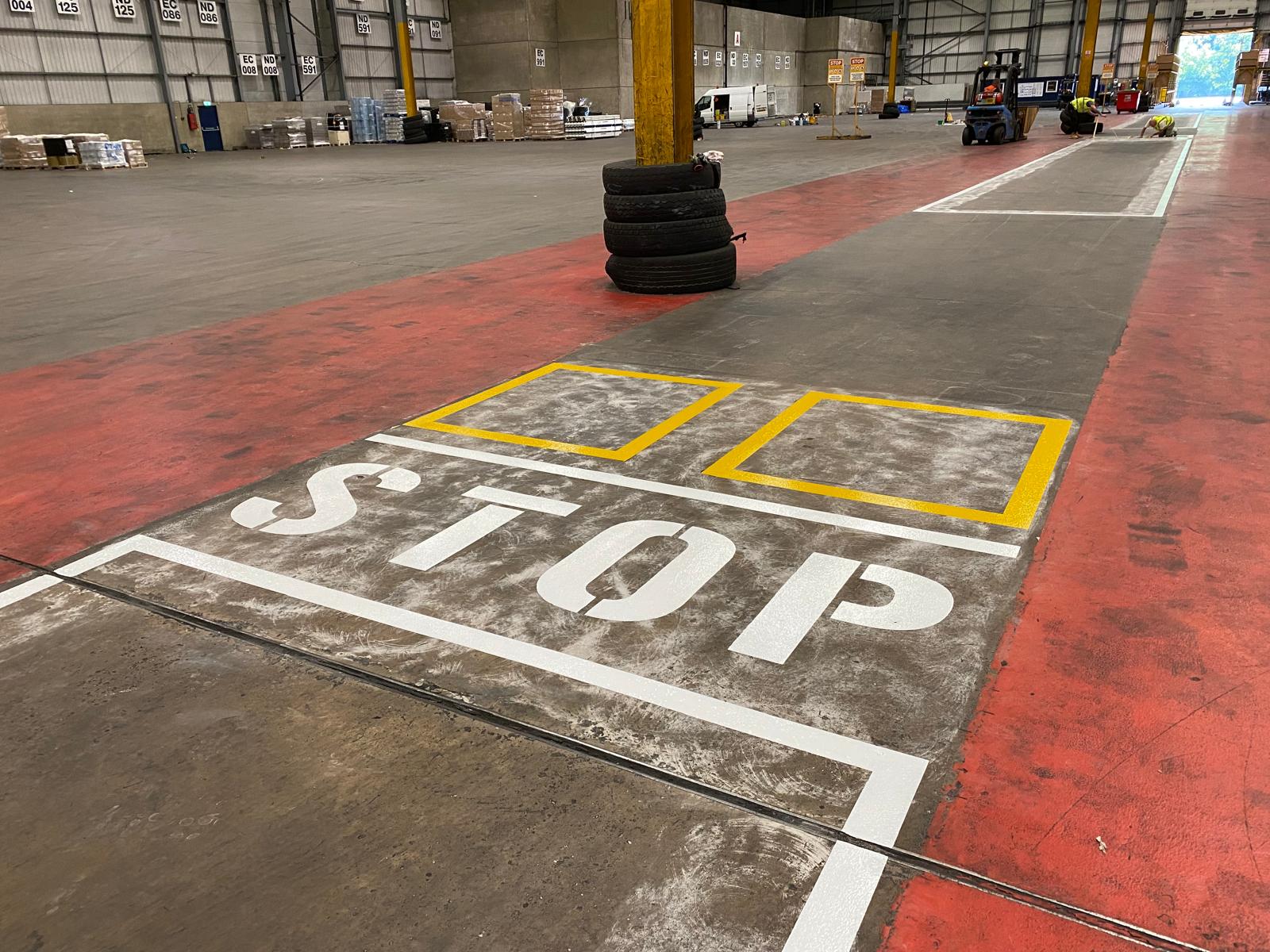

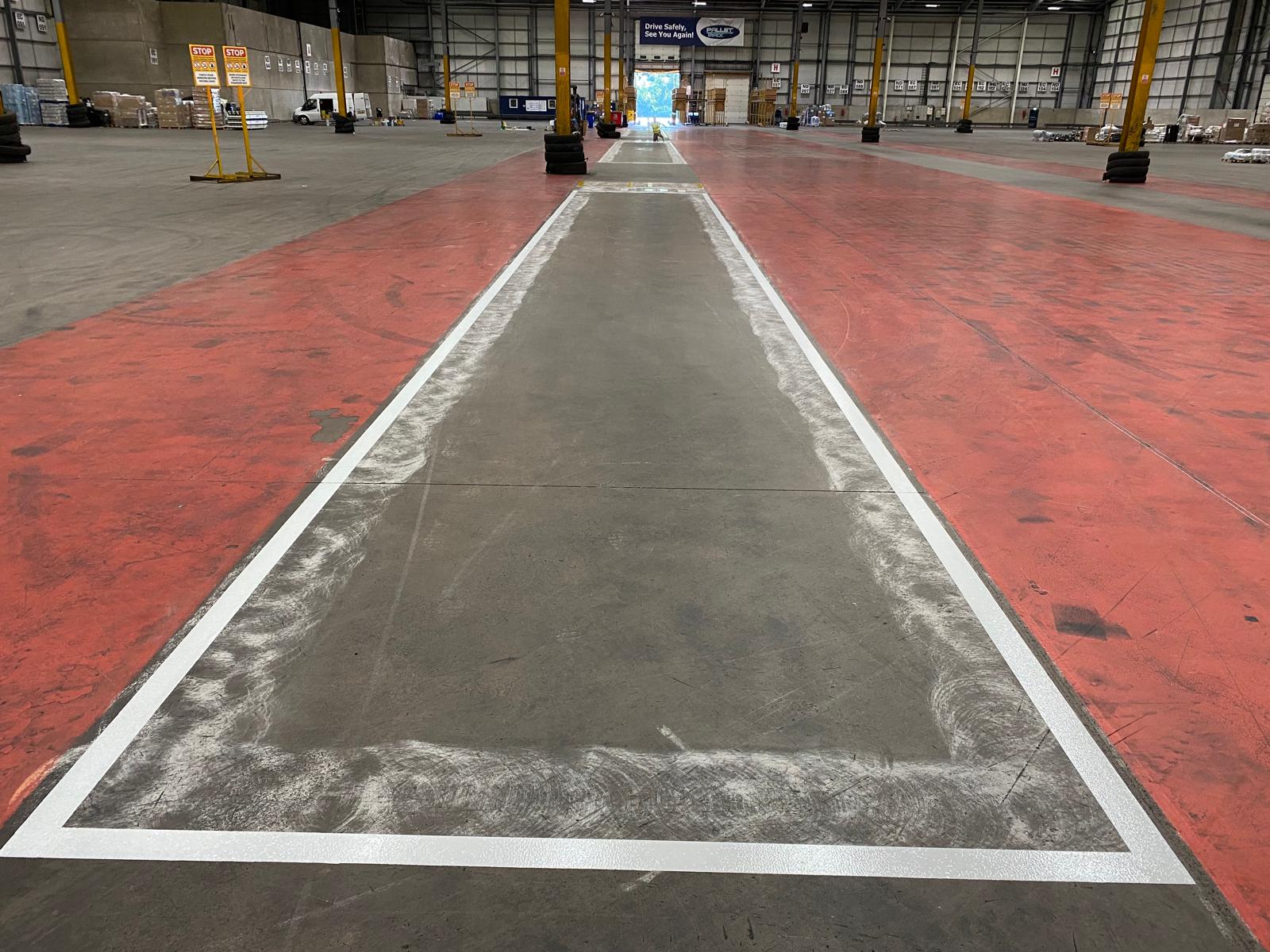

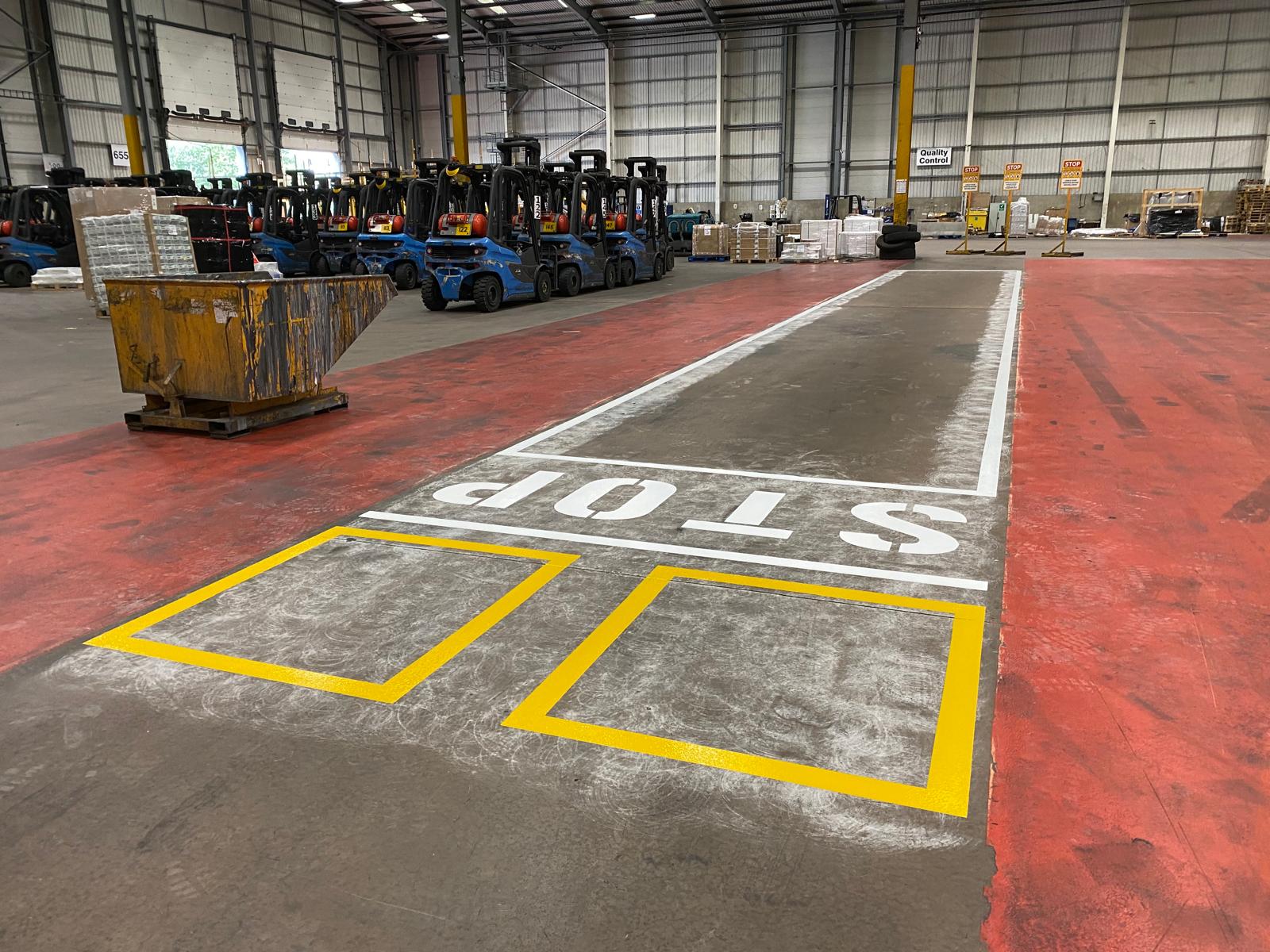

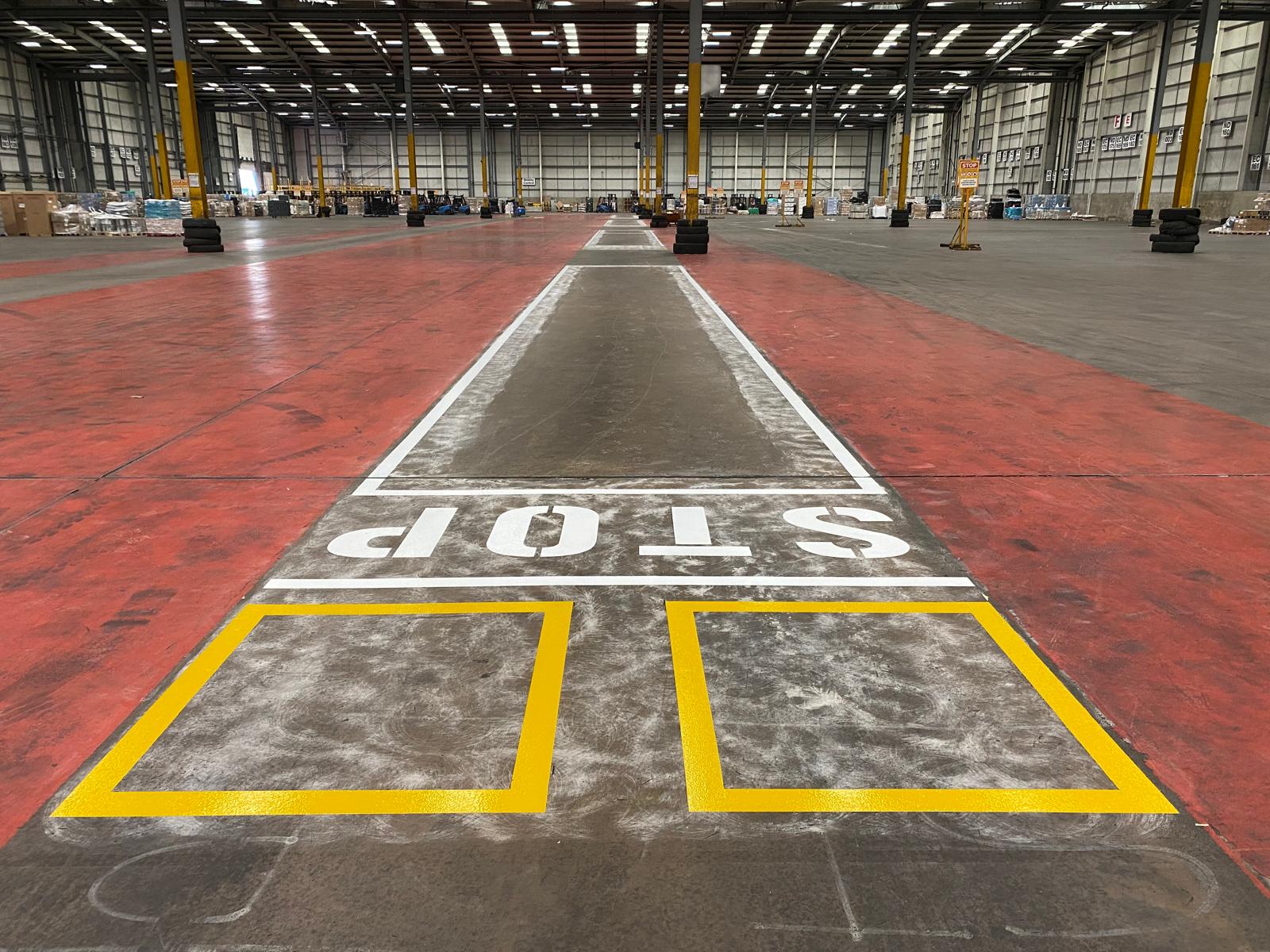

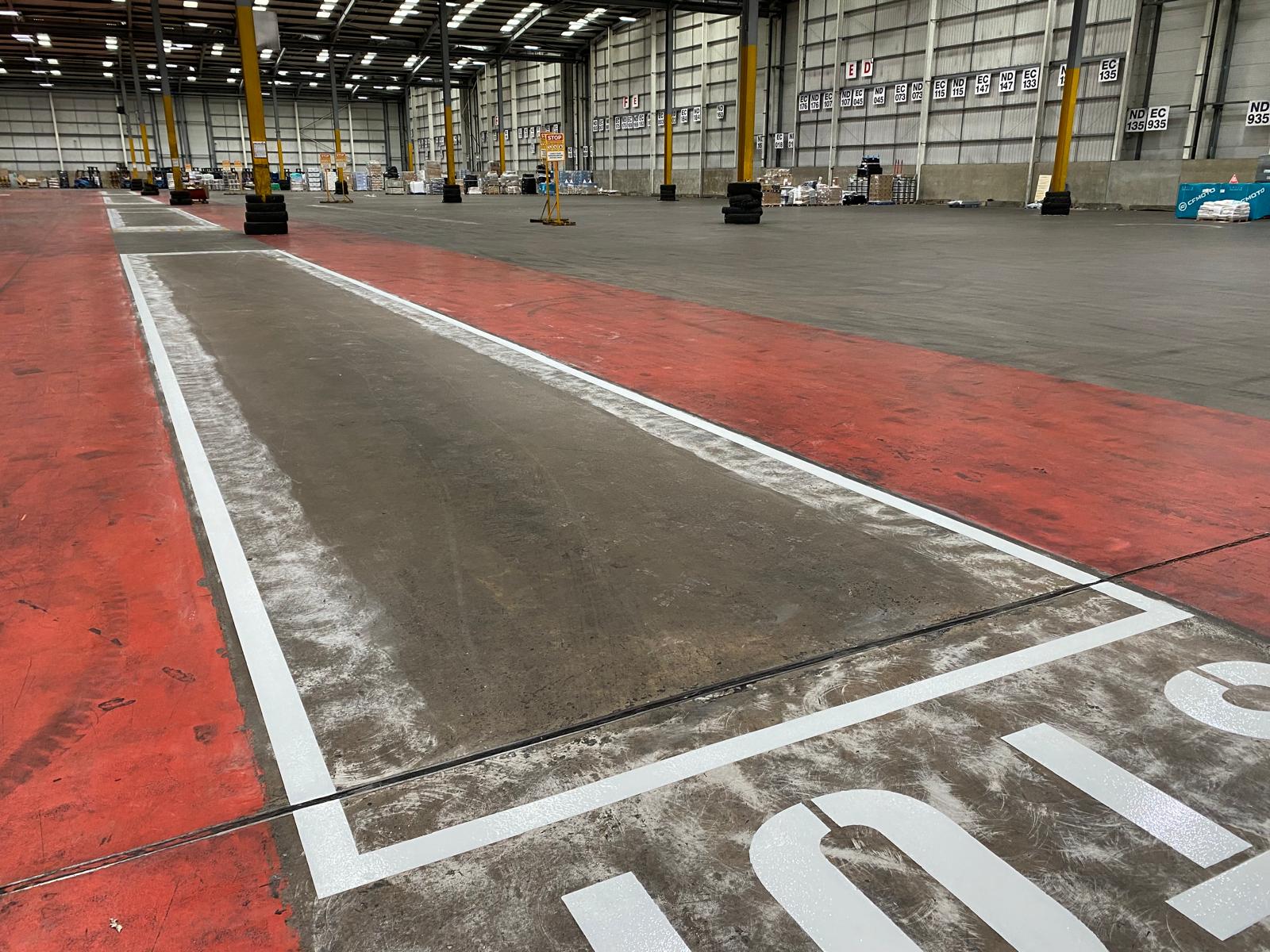

The white epoxy thixotropic line marking system was carefully applied to create clear boundaries and directional indicators. Safety yellow was selected for the STOP signs to enhance visibility and reinforce safety protocols. During the project, we also accommodated an additional request to install an exit route leading to the roller shutter doors, demonstrating our flexibility in meeting evolving client needs while maintaining consistent quality standards.
Resin Flooring Installation Case Study
Resin Flooring Installation Case Study
Resin Flooring Installation Case Study
Resin Flooring Installation Case Study
Resin Flooring Installation Case Study
Resin Flooring Installation Case Study
Resin Flooring Installation Case Study
Resin Flooring Type Used - Resin High Build Coating
Exceptional Thickness for Added Durability
Resin High Build Coating is an ideal flooring solution for demanding environments that require added protection and durability. This innovative coating is designed to provide a thicker layer than traditional flooring options, ensuring maximum resistance to wear and tear, even in the most challenging spaces.
Long-Lasting Protection
Resin High Build Coating is engineered to withstand heavy foot traffic, machinery, and impact. Its exceptional thickness guarantees long-lasting protection against daily wear, making it the perfect choice for industrial facilities, warehouses, and other high-traffic areas. Invest in a flooring solution that can stand up to the test of time.
Customisable Aesthetic Appeal
You can enhance the appearance of your space with the versatile design options offered by our Resin High Build. Choose from a variety of colours and textures to create a visually appealing environment that aligns with your brand and style preferences. Enjoy the perfect combination of functionality and aesthetic appeal in one innovative flooring solution.
Resin High Build Coating Characteristics
Feature | Details |
|---|---|
| Application | Applied in two or more coats, solvent free |
| Intended Use | Medium Duty use |
| Thickness | Up to 1000 microns |
| UV Resistance | Some resistance to chemical spillage |
| Slip Resistance | Aggregate can be added to achieve a slip resistant finish |
| Anticipated Life | Light Use: 5-7 Years / Moderate Use: 2-4 Years |
JD Flooring Guarantee
- Manufacturer Backed Warranties
- 23 years Project Bank
- Free Surveys and Advice
- Industry Approved Contractors
- Quality Assurance ISO9001
- Quality Assurance ISO14001
Client Satisfaction and Feedback
The logistics company expressed particular satisfaction with the resin flooring demarcation project’s execution and final outcome. They highlighted our ability to deliver precise, uniform results across all twelve parking bays while maintaining their operational efficiency during the installation process. The clear, durable line markings and safety indicators received specific praise for their contribution to improved traffic flow.
Our proven track record of annual maintenance work, combined with this successful demarcation project, further strengthened our long-term relationship with the client. The new traffic management system has effectively enhanced their workplace safety standards and supported their 5S certification requirements. The project stands as a testament to JD Flooring Limited’s capability to deliver complex industrial flooring solutions that meet specific operational needs while maintaining the highest safety standards.
